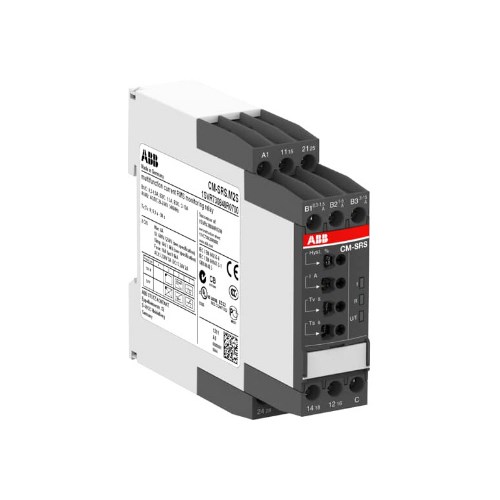

ABB CM-SRS.M2S CURRENT MONITORING RELAY 2C/O SPDT 4A/250V

Product Code: CM-SRS.M2S

The Single Phase Current Monitoring Relay is designed for over/under current measurement in the range of 0.3-15A with a time range of 0.1-30s. It features a changeover contact SPDT rated at 4A/250V. The supply voltage can be between 24 - 240VAC/DC. This relay has a width of 22.5mm, making it suitable for use in compact spaces.

Technical Specifications

Brand ABB
Contacts 2CO
Degree of Protection IP50 (Housing), IP20 (Terminals)
LED Colour U/T: Green, I: Red, R: Yellow
Measuring Range (A) 0.3 - 1.5, 1 - 5, 3 - 15
Mounting Type DIN Rail
No. of Phases 1
Operational Temperature Range (°C) -20 to +60
Pollution Degree 3
Rated Control Supply Voltage AC/DC (V) 24 - 240
Rated Current (A) 4
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6/4
Terminal Type Screw
Time Delay Range (s) 0.1-30 (adjustable)
Timing Range 0.1s - 30s
