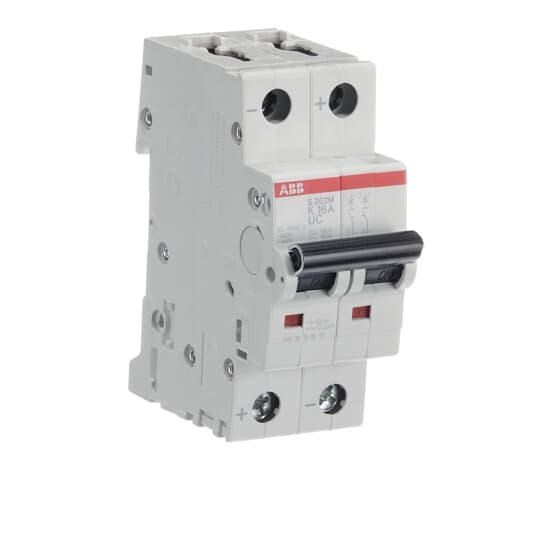

In the world of industrial electrical components, the MCB from the S200MUC collection stands out as a reliable choice for those seeking robust performance and adherence to international standards. This miniature circuit breaker (MCB) is designed for industrial applications and offers a dependable solution for circuit protection.
Rated at 16 A with an operating voltage between 400/415 VAC, this MCB is well-suited to handle demanding environments. Its breaking capacity of 15 kA at 400 VAC ensures that it can effectively interrupt high fault currents, minimizing potential damage to connected equipment. The device's short circuit capacity is rated at 10 kA, providing additional assurance in high-stress scenarios.
The unit features a dual-pole configuration, ensuring comprehensive protection across its circuitry. With dimensions of 35 mm in width, 88 mm in height, and 69 mm in depth, this compact design allows for efficient space utilization within control panels or distribution boards.
Built with a degree of protection rated at IP20 and pollution degree IP3, it safeguards against solid foreign objects while maintaining operational integrity even under challenging environmental conditions. The housing comes in RAL 7035 grey—a standard colour that blends seamlessly with most industrial settings.
Installation is straightforward thanks to its screw clamp terminal type which requires a tightening torque of just 2.8 N-m. This ensures secure connections without excessive effort during installation or maintenance procedures.
Operating efficiently within an ambient temperature range from -25°C to +55°C—and storage capability down to -40°C—this MCB remains functional across diverse climate conditions. It supports both operational frequencies of 50 Hz and 60 Hz making it versatile enough for various regional power systems.
Compliance with standards such as CSA 22.2 No.235 IEC/EN60947-2 and UL1077 underscores its quality assurance credentials meeting rigorous safety requirements recognized globally.
An impulse voltage rating of up to 4 kV further enhances its resilience against transient overvoltages typically caused by lightning strikes or switching operations elsewhere on the network.
Designed with functionality at its core this MCB incorporates Curve Type K characteristics optimizing response times according to specific load profiles often encountered within industrial contexts thereby reducing nuisance tripping incidents while preserving system uptime effectively managing power loss rated at just about four-point-four-six watts (4.46 W).
Overall when evaluating whether this product aligns with your technical requirements consider these factual insights into what makes it not only practical but also reliable under varied working conditions tailored specifically towards achieving optimal performance levels consistently over time without unnecessary complexity involved throughout each phase from selection through implementation right onto ongoing usage thereafter ensuring peace-of-mind knowing you have chosen wisely based upon sound engineering principles rather than mere marketing hype alone so rest assured you're investing wisely here today!
