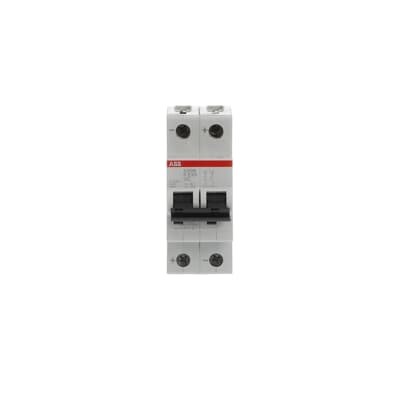

When selecting an MCB (Miniature Circuit Breaker) for industrial applications, it's crucial to consider a range of technical specifications to ensure it meets your system's demands. This particular model is designed with precision and reliability in mind, offering a robust solution for electrical circuit protection.
With a rated current of 63 A and a rated voltage between 400/415 VAC, this MCB is well-suited for heavy-duty electrical systems. Its breaking capacity stands at an impressive 15 kA at 400 VAC, ensuring it can handle significant fault levels without compromising safety or functionality.
The unit features two poles and adheres to multiple standards including CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 approvals. Such certifications guarantee compliance with international safety and performance benchmarks.
In terms of physical dimensions, the MCB measures 35 mm in width, 88 mm in height, and has a depth of 69 mm. These compact dimensions facilitate easy integration into existing panels or setups without requiring extensive modifications.
The screw clamp terminal type ensures secure connections while the recommended tightening torque is set at 2.8 N-m for optimal performance. The device also boasts an IP20 degree of protection which offers basic protection against solid objects like fingers but requires additional enclosure for complete environmental protection.
Rated for operation within ambient temperatures ranging from -25 to +55 degrees Celsius—and storage conditions stretching from -40 to +70 degrees Celsius—this MCB is versatile enough to operate under various environmental conditions typical in industrial settings.
Its power loss is measured at a modest 10.52 W which indicates efficient energy usage during operation—a critical factor when considering long-term operational costs and thermal management within electrical panels.
This model supports both common frequencies found globally (50/60 Hz) making it adaptable across different regions without compatibility concerns. Additionally, it provides an impulse voltage rating of up to 4 kV which helps withstand transient overvoltages commonly encountered in industrial environments.
Designed with practicality in mind, this MCB comes housed in RAL 7035 grey housing—an industry-standard color that fits seamlessly into most control cabinets or distribution boards as part of the S200MUC collection known for its reliability.
Overall this product represents a solid choice if you need dependable circuit protection that aligns with rigorous industrial standards while maintaining efficiency across diverse operating conditions.
