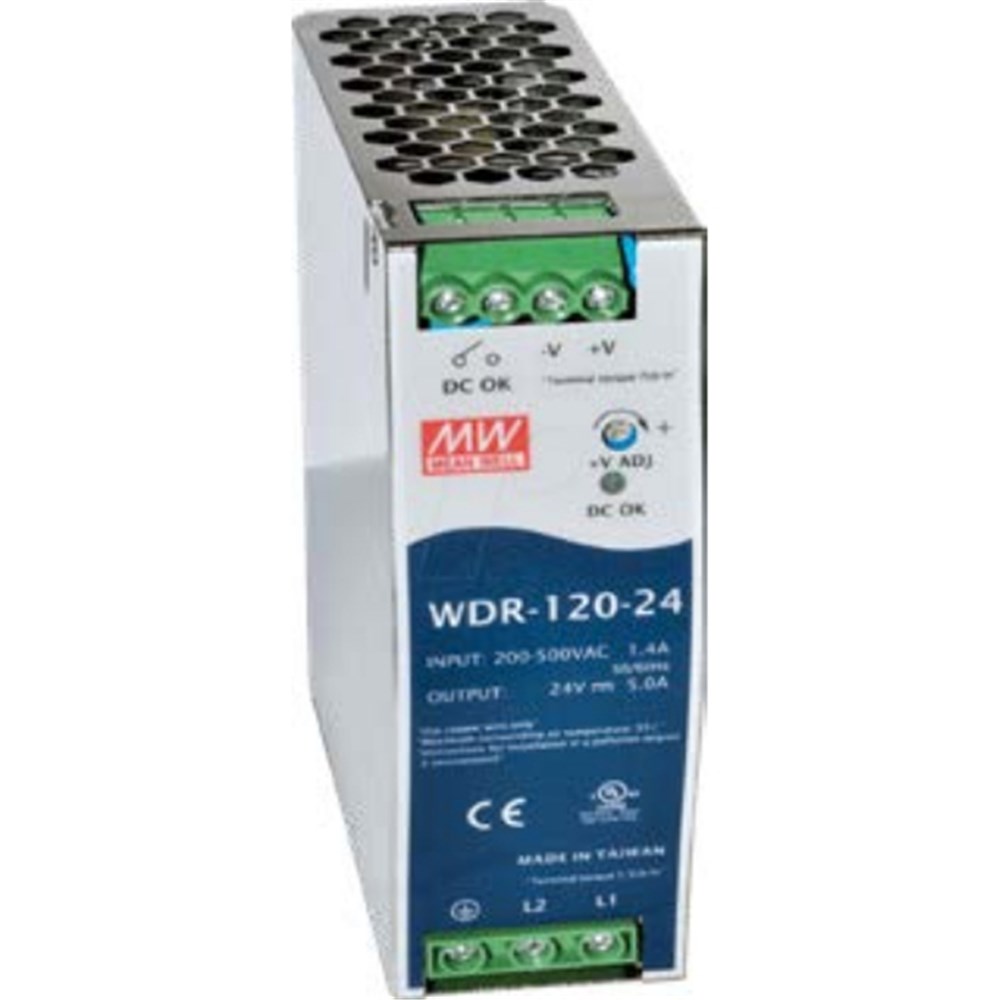

Meanwell WDR-120-24 DC POWER SUPPLY 24VDC 5A DIN RAIL MOUNT

Product Code: WDR-120-24

This DC Power Supply has a wide input voltage range of 180 to 550 VAC or 254 to 780VDC. It provides a stable output of 24VDC with a current rating of 5A, delivering a total power of 120W. The compact dimensions of this power supply are 125.2mm in height, 40mm in width, and 113.5mm in depth. It is designed for DIN Rail mounting and features LED indication for easy monitoring.

Technical Specifications

Brand Meanwell
Dimensions (mm) 125.2H x 113.5D x 40W
Input Voltage AC (V) 180-550
Input Voltage DC (V) 254-780
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to +70
Output Voltage DC (V) 24
Rated Current (A) 5
Rated Frequency (Hz) 47-63
Rated Power (W) 120
Series WDR-120

Documents
