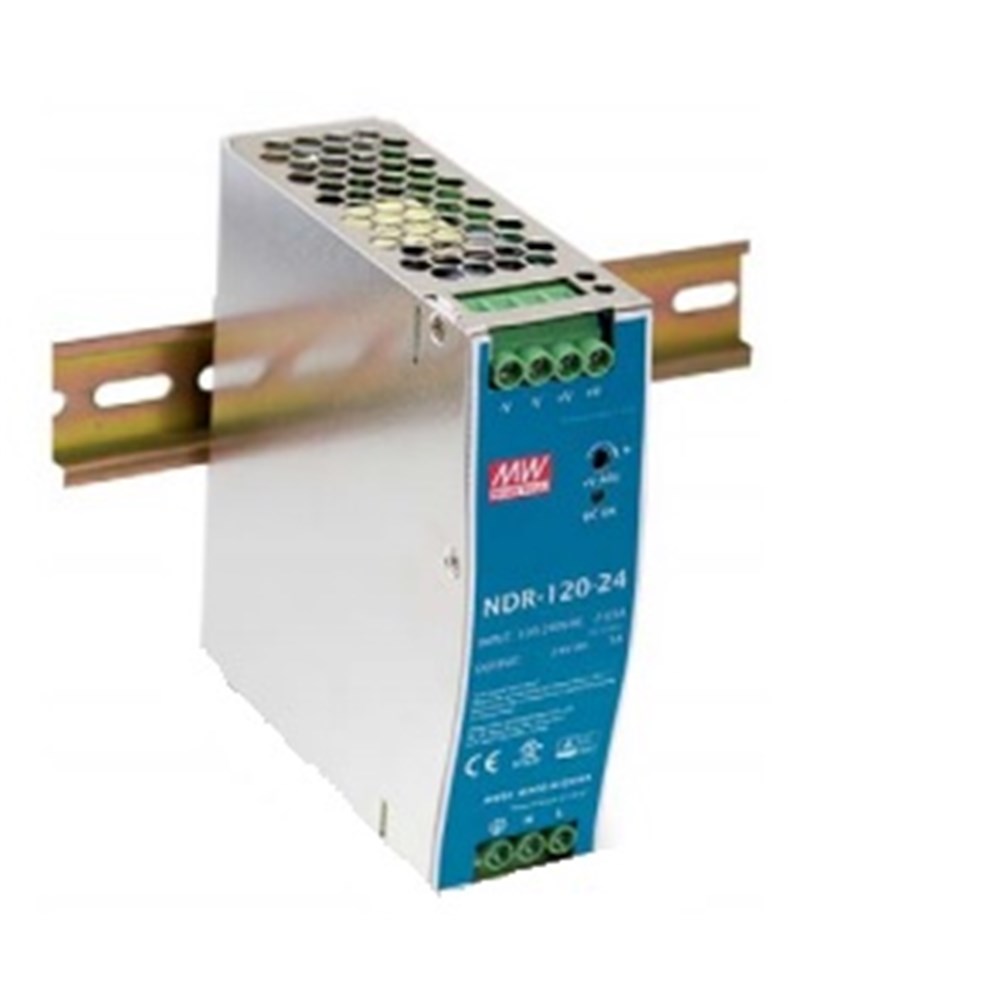

Meanwell NDR-120-24 DC POWER SUPPLY 24VDC 5A DIN RAIL MOUNT

Product Code: NDR-120-24

This DC Power Supply has a wide input voltage range of 90 to 264 VAC or 127 to 370VDC. It provides a stable output of 24VDC at 5A, with a total power output of 120W. The dimensions of this power supply are 40mm in height, 125.2mm in width, and 113.5mm in depth. It is designed for DIN Rail mounting and features LED indication for easy monitoring.

Technical Specifications

Brand Meanwell
Dimensions (mm) 40H x 113.5D x 125.2W
Input Voltage AC (V) 90-264
Input Voltage DC (V) 127-370
Mounting Type DIN Rail
Operational Temperature Range (°C) -20 to +70
Output Voltage DC (V) 24
Rated Current (A) 5
Rated Frequency (Hz) 47-63
Rated Power (W) 120
Series NDR-120
