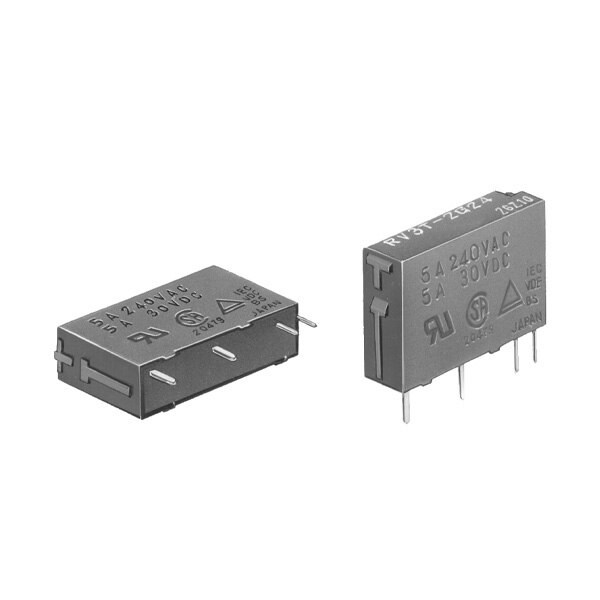

IDEC RV3T-1G05 PCB Terminal Relay 5VDC Coil

Product Code: RV3T-1G05

  • Compact size: 20.3mm x 12.6mm x 5.08mm
  • Long life: 20 million operations
  • Wide temp range: -40 to 70°C
  • High insul. resistance: 100 MOhm
  • CE & UL recognized
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 5
Dimensions (mm) 20.3W x 12.6H x 5.08D
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -40 to 70
Weight (g) 3
Minimum Mechanical Life 20,000,000
Operating Humidity 45 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 100
Product Type PCB Terminal Relay
Brand IDEC
Coil Voltage 5 VDC
Depth 5.08 mm
Electrical Life 20000000 Operations
Height 12.6 mm
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 20000000 Operations
Operational Temperature -40 to 70 deg C
Shock Resistance 100 ms
Standards and Approvals CE, UL Recognized File E68961
Vibration Resistance 10-55 Hz
Weight 3 g
Width 20.3 mm

Description

The IDEC RV3T-1G05 is a 5V DC PCB relay designed for high sensitivity with a low power consumption of 120mW. Its SIL terminal configuration facilitates straightforward PC board design. This washable relay meets c-UL and TÜV compliance standards, ensuring its suitability for various applications requiring certified reliability.
