Specifications

Dimensions (mm)	7W x 10H x 4D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	35
Nominal Voltage AC (V)	120
Reference No.	A961110
No. of Conductors	1
Type	Lightning Protection
Maximum Continuous Voltage AC (V)	150
Weight (kg)	0.33

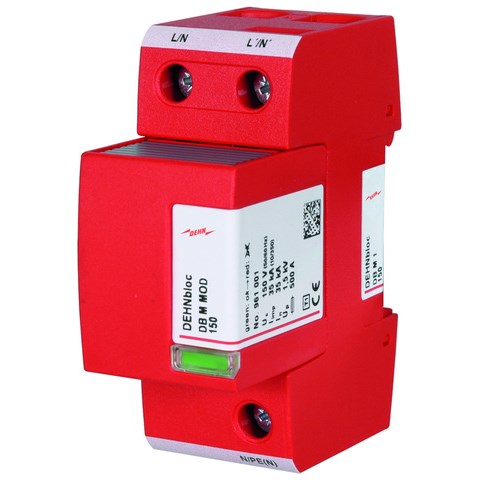

Product Type	Lightning Current Arrester
Brand	DEHN
Cross Section	50 sq-mm Stranded, 35 sq-mm Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	73 mm
Fuse Rating	125 A
Height	90 mm
Lightning Current Carrying Capability	35 kArms
Lightning Impulse Current	35 kA
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Voltage	120 V
Response Time	<= 100 ns
SPD Class	Type 1, Class I
Standards and Approvals	UL, CSA
Voltage Protection Level	<=1.5 kV
Weight	317 g
Width	36 mm
