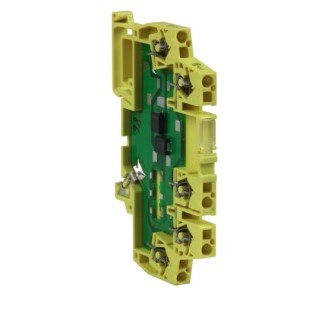

When selecting a reliable surge protection device (SPD) for your industrial or commercial needs, it's crucial to consider the technical specifications that ensure both performance and compatibility with your existing systems. This SPD offers a robust solution, designed to meet demanding environments while maintaining an efficient profile.
Operating at a rated voltage of 24 V and supporting a current of up to 10 A, this SPD is well-suited for various applications requiring dependable overvoltage protection. The connection type features spring clamps, known for their secure and maintenance-free connections, facilitating ease of installation on the standard 35 mm DIN rail.
With an IP20 degree of protection, this device is suitable for indoor use where dust ingress is minimal. Its compact dimensions—6 mm in width, 92 mm in height, and 64 mm in depth—allow it to fit seamlessly into tight spaces without compromising functionality. The vibrant yellow color ensures high visibility within electrical panels.
The SPD operates effectively across a broad temperature range from -40°C to 80°C, making it adaptable to harsh environmental conditions. It complies with IEC 61643-21 and EN 61643-21 standards, ensuring adherence to international safety and performance benchmarks.
Weighing just 33 grams and constructed from durable polyamide material, this device combines lightweight design with resilience against mechanical stress. The cross-section accommodates both solid and flexible conductors ranging from 0.08 sq-mm to 2.5 sq-mm, providing versatility in wiring options.
In terms of electrical characteristics, the SPD boasts capacitance values not exceeding 2 nF (L-L), which helps maintain signal integrity by minimizing interference. Furthermore, it offers impressive voltage protection levels: <=70V (L-L) under In C1 conditions (UP) and <=45V (L-L) at a rapid rise rate of 1 kV/us C3 (UP). Classified as Type 4 according to SPD standards, this product provides effective transient overvoltage suppression suitable for secondary circuits.
This combination of features makes the SPD an excellent choice for professionals seeking reliable surge protection without sacrificing space or performance quality.
