Specifications

Lightning Impulse Current (10/350 µs) - Iimp (kA)	100
Maximum Continuous Operating Voltage MCOV AC (V)	255
No. of Poles	N-PE
SPD Type	Type 1
Voltage Protection Level - Up (kV)	≤ 2.5
Weight (kg)	0.54
Circuit Type	MSB
Response Time (ns)	≤ 100
Article No.	900050
Dimensions (mm)	0.11W x 0.11L x 0.1D
Product Type	Lightning Current Arrester
Brand	DEHN
Cross Section	1 sq-mm Solid/Flexible, 2.5 sq-mm Solid/Flexible
Depth	89 mm
Height	100 mm
Lightning Current Carrying Capability	100 kArms
Lightning Impulse Current	100 kA
Material	Thermoplastic
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Voltage	255 VAC
Response Time	<= 100 ns
SPD Class	Type 1, Class I
Voltage Protection Level	<=2.5 kV
Weight	507 g
Width	72 mm

Description

Coordinated single-pole DEHNgap modular N-PE lightning current arrester (type 1 according to EN 61643-11). Total current arrester specifically designed for installation in 3+1 and 1+1 circuits of TT systems according to IEC 60364-5-53 between neutral conductor N and protective conductor PE. For protecting low-voltage consumers installations against surges and even direct lightning strikes.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

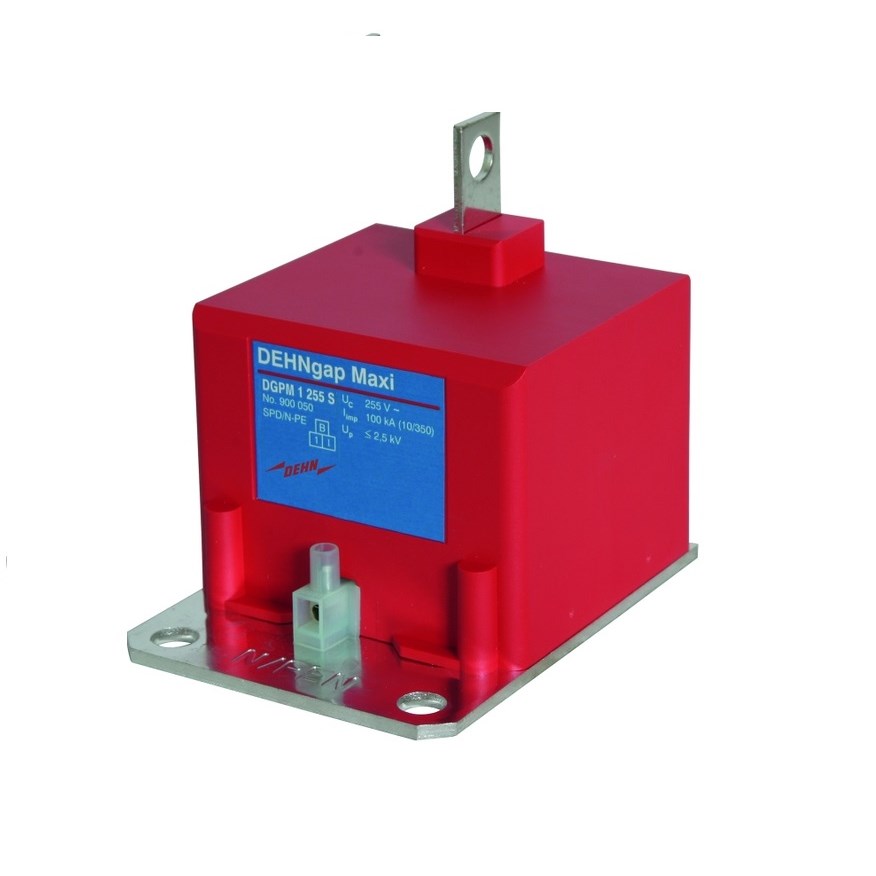

DEHN DGPM1255S Lightning Current Arrester 100kA 255VAC 72mm W 89mm D 100mm H Thermoplastic

Product Code: DGPM1255S
