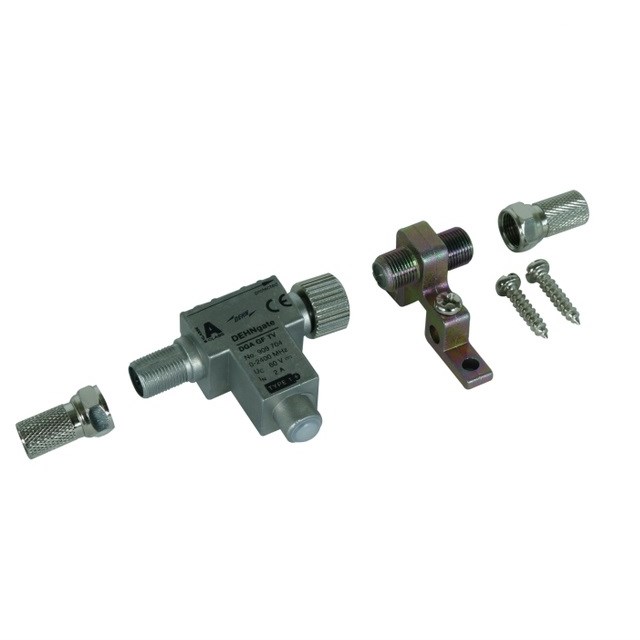

DEHN DGAGFTV Surge Arrester 2.5kA 2A 60VDC F-Socket F-Plug Metal Bare Surface IP30

Product Code: DGAGFTV

  • Surge protection for 60 VDC systems
  • Compact size with 49 mm height
  • Operates in extreme temps: -40 to 80°C
  • IP30 rated for indoor use
  • Supports F-Socket and F-Plug connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Article No. 909704
Dimensions (mm) 0.05W x 0.05L x 0.02D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 2.5
Maximum Continuous Operating Voltage MCOV DC (V) 60
Nominal Discharge Current (8/20µs) - In (kA) 10
SPD Type Type 1
Weight (kg) 0.09
Circuit Type MSB
Product Type Surge Arrester
Brand DEHN
Colour Bare Surface
Connection Type F-Socket, F-Plug
Degree of Protection IP30
Height 49 mm
Lightning Impulse Current 2.5 kA
Material Metal
Operational Temperature -40 to 80 deg C
Rated Current 2 A
Rated Voltage 60 VDC
SPD Class Type 1
Standards and Approvals IEC 61643-21, EN 61643-21
Voltage Protection Level <=700V (Limp D1 (UP), <=700V (for In C2 (UP, <=600 1 kV/µs C3 (UP))
Weight 86 g

Description

Lightning current arrester with F socket for remote supply for 75 ohm satellite and broadband cable systems. It fulfils the high shielding requirements of class A according to EN 50083-2. It allows space-saving installation into all common TV and satellite applications.
