Specifications

Ambient Temperature Range (°C)	-50 °C to +100 °C
Dimensions (mm)	17W x 105H x 4D
Length (mm)	1030
Suitable For	Isolated Lightning Protection
Weight (kg)	0.658
Accessory Type	Spacer
Fixing Hole Ø (mm)	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Surface Protection	UV-stabilised and weather-resistant
Rod Diameter (mm)	7 - 10
Insulating Clearance (mm)	945
Max. Gust Wind Speed with Bucket Foundation (km/h)	140

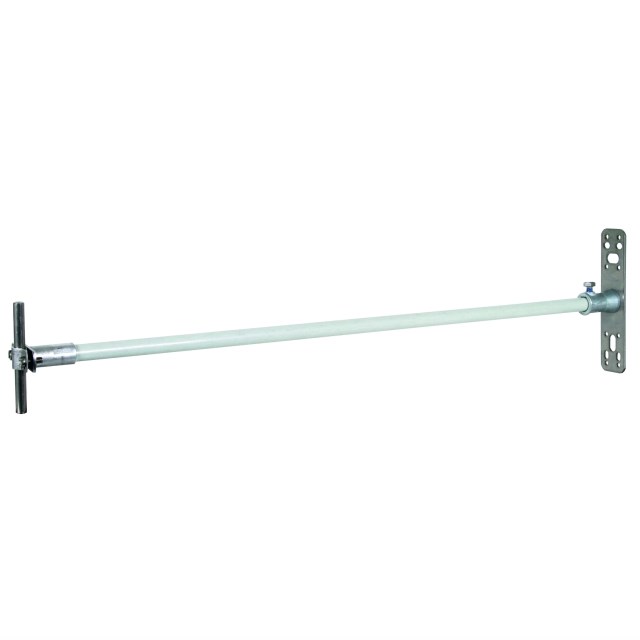

Product Type	ISO Spacer With Fixing Plate
Brand	DEHN
Ambient Temperature	-50 to 100 deg C
Colour	RAL 7035 Grey
Depth	4 mm
Finish	xxDeletexx
Height	105 mm
Length	1030 mm
Material	Stainless Steel
Standards and Approvals	DIN IEC/TS 62561-8, VDEV 0185-561-8
Suitable For Use With	Isolated Lightning Protection
Weight	0.658 kg
Width	17 mm
