Specifications

Article No.	971126
Dimensions (mm)	0.07W x 0.1L x 0.04D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	25
Maximum Continuous Operating Voltage MCOV DC (V)	60
No. of Modules	2
No. of Poles	1P+PE
Signal C/O Contact	Yes
SPD Type	Type 1
Weight (kg)	0.3
Circuit Type	MSB
Response Time (ns)	≤ 100
Operating State/Fault Indication	Green/Red
Short-Circuit Withstand Capability - Iscc? (kArms)	25
Product Type	Type-1 Lightning Current Arrester
Brand	DEHN
Degree of Protection	IP20
Depth	0.04 mm
Length	0.1 mm
Lightning Impulse Current	25 kA
Mounting Type	DIN Rail
Number of Modules	2
Rated Short Circuit Current	25 kA
Rated Voltage	60 VDC
Response Time	<= 100 ns
SPD Class	Type 1
Suitable For Use With	DC Circuits
Weight	0.3 kg
Width	0.07 mm

Description

Coordinated and modular single-pole spark-gap-based DEHNsecure lightning current arrester (classification type 1 according to EN 61643-11). Spark gap technology particularly suited for use in d.c. circuits. For protecting low-voltage consumer´s installations against surges and even direct lightning strikes.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

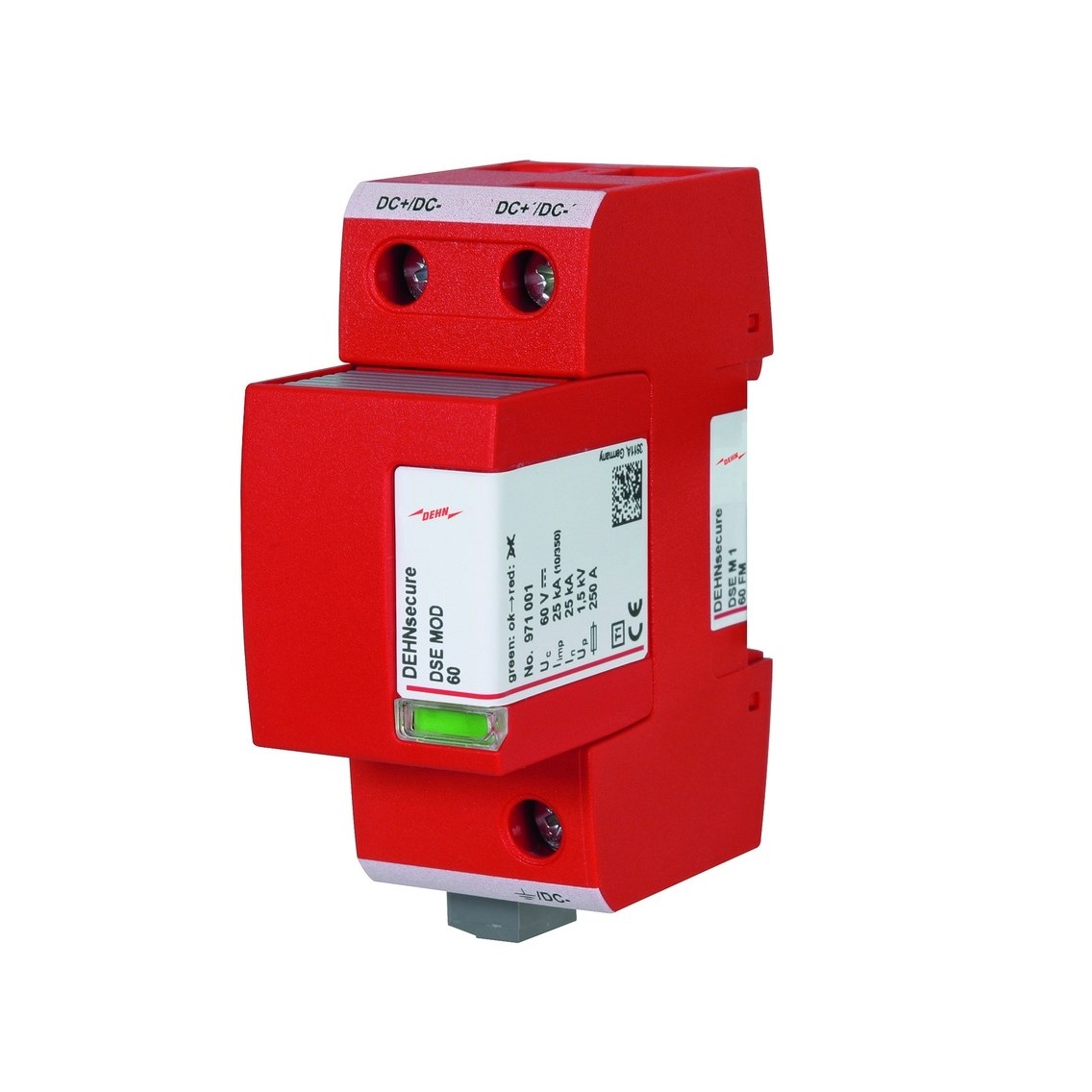

DEHN DSEM160FM Type-1 Lightning Current Arrester 25kA 60VDC DIN Rail Mount 0.1mm L 0.07mm W 0.04mm D IP20

Product Code: DSEM160FM
