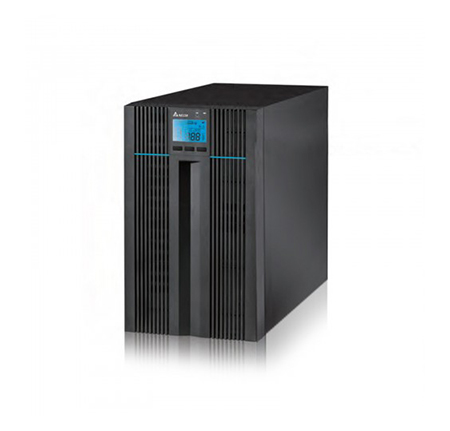

Delta UPS302N2000B0B6 Double Conversion Online UPS N 3kVA/2.7kW 220/230/240VAC

Product Code: UPS302N2000B0B6

  • Rated power of 3 kVA with 0.9 power factor
  • Operates at 220/230/240 VAC
  • Low noise level under 50 dBA
  • Equipped with IEC C13 x6, C19 x1 outlets
  • Supports input/output frequency of 50/60 Hz
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series N
Battery Charge Current 1.5 A
Battery Voltage 72 VDC
Communication/Memory Interface MINI, USB
Connection Type N/A
Depth 320 mm
Height 225 mm
Humidity 5% - 95% RH
Input Frequency 50/60 Hz
Noise Level <50 dBA
Operational Temperature 0 to 400 deg C
Output Frequency 50/60 Hz
Power Factor 0.9
Rated Power 3 kVA
Rated Voltage 220/230/240 VAC
Receptacle IEC C13 x 6, C19 x 1
Relative Humidity 5-95%
Width 145 mm

Description

<p>For businesses and industries relying on uninterrupted power, a reliable Uninterruptible Power Supply (UPS) is crucial. The N Series UPS stands as a dependable choice with its robust specifications tailored for industrial and commercial environments.</p><p>This UPS operates at a rated voltage of 220/230/240 VAC, delivering a consistent power supply with a rated power of 3 kVA. With a power factor of 0.9, it ensures efficient performance by maximizing the real power available to your systems. This efficiency is complemented by an output frequency that can accommodate both 50 Hz and 60 Hz requirements, offering versatility across different electrical standards.</p><p>When it comes to noise levels, this UPS maintains an environment-friendly operation with sound emissions kept below 50 dBA. This makes it suitable for settings where maintaining low noise levels is essential.</p><p>The unit features multiple receptacle options including six IEC C13 outlets and one C19 outlet, providing flexibility in connecting various devices. Designed to withstand diverse conditions, it functions optimally within relative humidity levels ranging from 5% to 95%. Additionally, the operational temperature range extends impressively from 0 up to an extreme of 400 degrees Celsius—though it&amp;#39;s worth noting typical operating environments won&amp;#39;t reach such high temperatures.</p><p>On the battery front, this model supports a charge current of 1.5 A with a battery voltage set at 72 VDC. These attributes ensure quick charging cycles and sustained battery life for extended backup during outages.</p><p>Communication capabilities are facilitated through MINI USB interfaces, allowing seamless integration into existing monitoring systems or networks for easy management and control.</p><p>The compact design measures at just 145 mm in width, standing at a height of 225 mm and extending to a depth of only 320 mm—making installation straightforward even in space-constrained areas while still packing considerable power punch.</p><p>In summary, the N Series UPS offers reliability paired with efficiency for those seeking stable energy solutions in demanding environments.</p>
