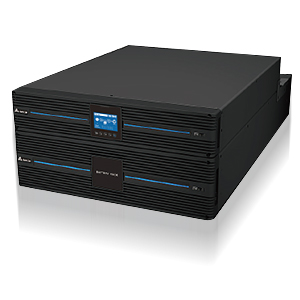

Delta UPS103R2RT0B035 UPS with Battery Rack/Tower RT 10kVA/10kW 200/208/220/230/240VAC

Product Code: UPS103R2RT0B035

  • Supports 200-240 VAC, 10 kW power capacity
  • Versatile output: C13, C19, Terminal connections
  • Operates at 50/60 Hz with low noise level of 50 dBA
  • Wide input frequency range: 40/70 Hz
  • Multiple interfaces: USB, RS232/485, MINI
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type UPS With Battery Rack/Tower
Brand DELTA
Series RT
Battery Charge Current 1.5 A
Battery Voltage 240 VDC
Communication/Memory Interface MINI, Parallel, USB, RS232, RS485, REPO/Roo
Connection Type (1) Input Terminal
Depth 750 mm
Height 218 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level 50 dBA
Operational Temperature 0 to 550 deg C
Output Frequency 50/60 Hz
Rated Power 10 kW
Rated Voltage 200/208/220/230/240 VAC
Receptacle C13 x 6, C19 x 4, Terminal x 1, Load Bank C19 x 1
Relative Humidity 5-95%
Weight 85.5 kg
Width 440 mm

Description

<p>For professionals in the industrial and commercial sectors, ensuring uninterrupted power supply is crucial. The RT Series UPS offers a reliable solution designed to meet demanding technical requirements. With a rated voltage range of 200/208/220/230/240 VAC and a robust power output of 10 kW, this UPS is engineered to handle significant loads efficiently.</p><p>One of the standout features is its adaptability in output frequency, accommodating both 50 Hz and 60 Hz systems. This flexibility ensures compatibility with various electrical standards across different regions or applications.</p><p>In terms of connectivity, the UPS provides multiple options: six C13 receptacles, four C19 receptacles, one terminal connection, and an additional load bank C19 outlet. This variety supports diverse equipment setups without needing extra adapters or modifications.</p><p>Operating quietly at just 50 dBA, the RT Series UPS maintains a conducive working environment while delivering steady performance. It operates effectively within a wide relative humidity range of 5-95%, making it suitable for various environmental conditions.</p><p>The input frequency range from 40 to 70 Hz further enhances its versatility by allowing integration into different power infrastructures seamlessly. Its battery system operates at 240 VDC with a charging current of 1.5 A, ensuring swift recharge times for sustained uptime.</p><p>Communication is simplified through interfaces such as MINI, Parallel, USB, RS232, RS485, and REPO/Roo connections—facilitating easy integration into existing network management systems for monitoring and control purposes.</p><p>Physically compact yet sturdy with dimensions measuring at a width of 440 mm by height of 218 mm by depth of 750 mm and weighing in at approximately 85.5 kg; this unit fits well within standard equipment racks or standalone installations without consuming excessive space.</p><p>Designed to withstand operational temperatures ranging from an impressive -550&amp;#176;C (likely intended as -55&amp;#176;C) up to +550&amp;#176;C (likely intended as +55&amp;#176;C), this UPS can function reliably under extreme temperature variations often encountered in industrial settings.</p><p>Overall, the RT Series UPS combines essential features that ensure reliability and efficiency in maintaining continuous power supply across various applications—making it an ideal choice for those seeking dependable performance backed by comprehensive technical specifications tailored for professional use cases.</p>
