Product Code: UPS103R6RT2N035

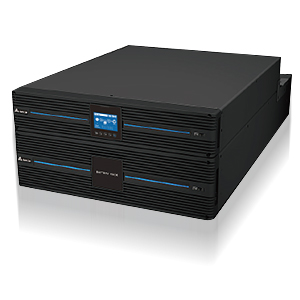

Explore the robust Delta Amplon RT 10000VA/10000W UPS, a versatile 2RU unit designed for both rack and tower configurations. This model operates efficiently on both 3:3 and 3:1 phase power, ensuring adaptability to various electrical setups. Note that it does not include internal batteries and requires at least one External Battery Module (EBM) to function optimally. Installation is facilitated by the necessary RAIL KIT IS 3915100011. Its dimensions are compact at 440W x 649D x 88.2H mm, with a lightweight design of just 16.6kg, making it an ideal choice for space-conscious environments demanding reliable power protection.

Brand	DELTA
Battery Charge Current (A)	Up to 8
Battery Voltage DC (V)	144 (De-rating to 70%)
Communication Interface	MINI Slot x 1, Parallel Port x 2, USB Port x 1, RS232 Port x 1, RS485 Port x 1, REPO/roo x 1, Dry Contact x 4
Connection Type	Input Terminal x 1, Bypass Input Terminal x 1
Dimensions (mm)	440 W x x 649 D x 88.2 H
Humidity	5 ~ 95% (non-condensing)
Input Frequency Range (Hz)	40-70
Noise Level (dBA)	54
Operational Temperature Range (°C)	0 - 550
Output Frequency Range (Hz)	50/60 ± 0.05
Output Receptacle	Terminal Block x 1
Output Voltage AC (V)	380/400/415 (Three phase), 220/230/240 (Single Phase)
Power Rating (W)	10kVA/10kW
Series	RT
Voltage Range AC (V)	138-485
Weight (kg)	16.6

Uninterruptible Power Supplies (UPS)

DELTA AMPLON RT 10000VA/10000W UPS 3ph Rack/Tower NO INT BATT UPS103R6RT2N035

Product Code: UPS103R6RT2N035
