Product Code: UPS203R6RT2N035

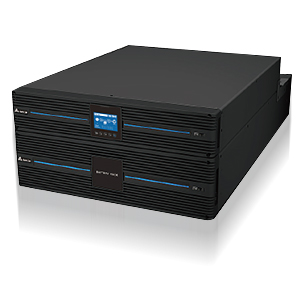

The Delta Amplon RT 20,000VA/20,000W UPS offers versatile phase configurations of 3:3 or 3:1 to suit a variety of power supply needs. Designed for both rack and tower setups, this unit does not include internal batteries but supports a minimum configuration of two External Battery Modules (EBMs) for extended power protection. Please note, the RAIL KIT IS 3915100011 is required for installation. With dimensions of 440W x 760D x 88.2H (mm) and a weight of 22.5kg, it's engineered to seamlessly integrate into your existing infrastructure.

Brand	DELTA
Battery Charge Current (A)	Up to 8
Battery Voltage DC (V)	144 (De-rating to 70%)
Communication Interface	MINI Slot x 1, Parallel Port x 2, USB Port x 1, RS232 Port x 1, RS485 Port x 1, REPO/roo x 1, Dry Contact x 4
Connection Type	Input Terminal x 1, Bypass Input Terminal x 1
Dimensions (mm)	440 W x x 760 D x 88.2 H
Humidity	5 ~ 95% (non-condensing)
Input Frequency Range (Hz)	40-70
Noise Level (dBA)	54
Operational Temperature Range (°C)	0 - 550
Output Frequency Range (Hz)	50/60 ± 0.05
Output Receptacle	Terminal Block x 1
Output Voltage AC (V)	380/400/415 (Three phase), 220/230/240 (Single Phase)
Power Rating (W)	20kVA/20kW
Series	RT
Voltage Range AC (V)	138-485
Weight (kg)	22.5
