Uninterruptible Power Supplies (UPS)

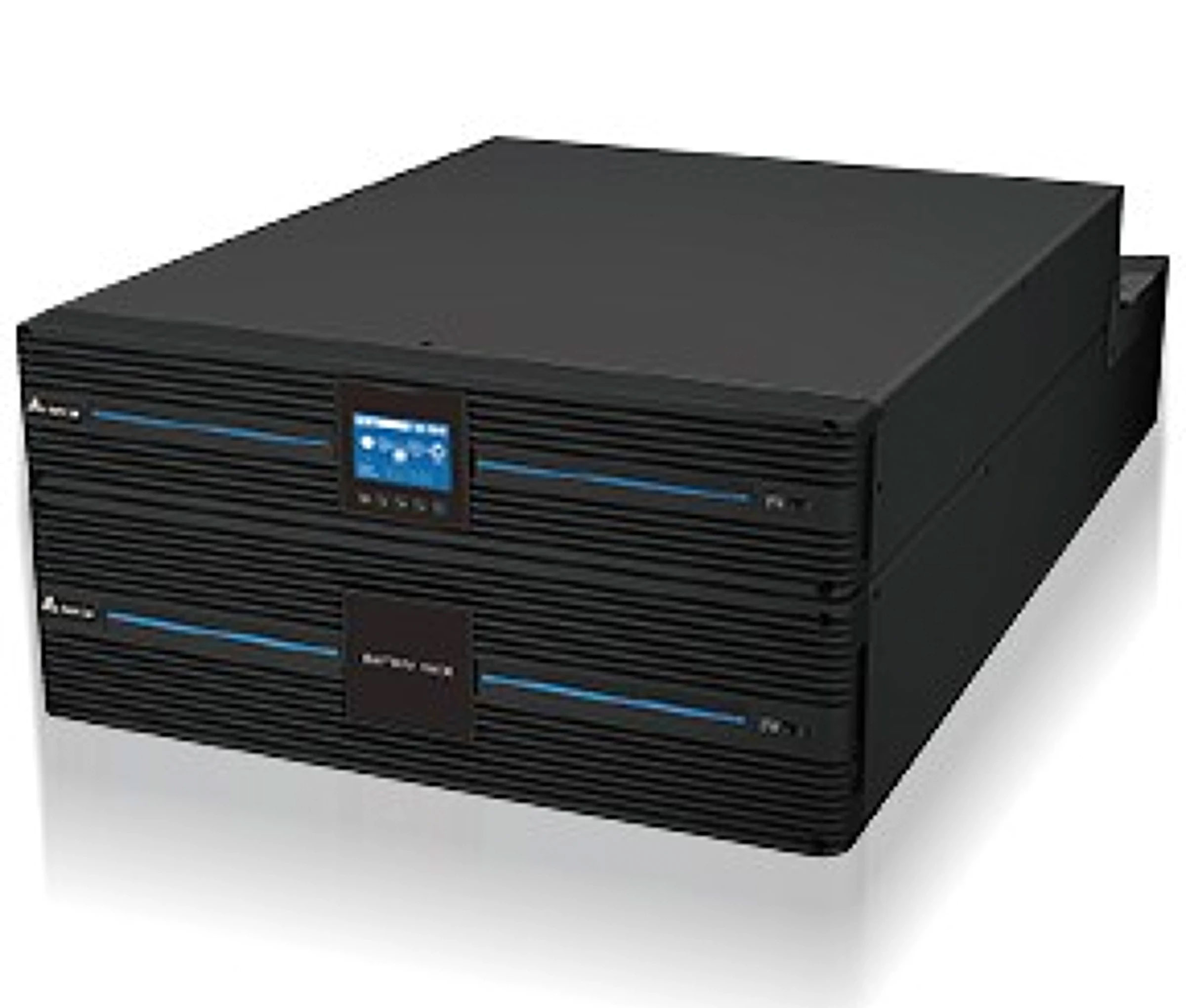

DELTA AMPLON RT 8000VA/8000W UPS No Internal Batteries Rack/Tower UPS802R2RT2N035

Product Code: UPS802R2RT2N035

The Delta Amplon RT 8000VA/8000W 2RU is a versatile, extended runtime model designed for both rack and tower configurations. This unit does not include internal batteries and requires the BBU201B109035 for operation. Additionally, installation necessitates the RAIL KIT IS 3915100011. It features a single MINI slot for expansion and measures 440W x 565D x 88.2H (mm), with a weight of 15.2kg, making it a compact yet powerful solution for your power management needs.

Technical Specifications

Brand DELTA
Battery Charge Current (A) Up to 8
Battery Voltage DC (V) 144
Communication Interface MINI Slot x 1, Parallel Port x 2, USB Port x 1, RS232 Port x 1, RS485 Port x 1, REPO/roo x 1, Dry Contact x 4
Connection Type Input Terminal x 1
Dimensions (mm) 88.2 H x 565 W x 430 D
Humidity 5 ~ 95% (non-condensing)
Input Frequency Range (Hz) 40-70
Noise Level (dBA) 50
Operational Temperature Range (°C) 0 - 550
Output Frequency Range (Hz) 50/60 ± 0.05
Output Receptacle Terminal Block x 1; Load bank: Terminal block x 1
Output Voltage AC (V) 200/208/220/230/240
Power Rating (W) 8kVA/8kW
Series RT
Voltage Range AC (V) 100-280
Weight (kg) 15.2
