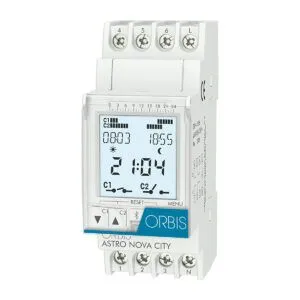

ORBIS ASTRO-CITY ASTRONOMICAL DIGITAL TIME SWITCH 230VAC DAILY

Product Code: ASTRO-CITY

The Astronomical Timed Switch is a versatile device that offers daily updating and easy programming through text menus. It features two switched contacts and can accommodate up to 40 daily or weekly programs. The switch supports both fixed and astronomical operations, allowing for automatic activation at dawn and dusk. Additionally, it provides an adjustable correction of the astronomical timetable, with a range of up to ± 9 hours and 59 minutes.

Technical Specifications

Brand ORBIS
Battery Backup 4 years
Contacts 2CO
Degree of Protection IP20
Function Daily
Minimum Switching Time (s) 60
Mounting Type DIN Rail
No. of Modules 2
Nominal Frequency (Hz) 50/60
Operational Temperature Range (°C) -10 to +45
Pollution Degree 2
Power Consumption (W) 1.3
Rated Current (A) 16(10)
Rated Impulse Withstand Voltage (kV) 2.5
Terminal Type Screw
Universal Supply Voltage AC (V) 230
Wireless Comunications Type Bluetooth 4.0
