Electrical Time Switches, Timers & Control Relays

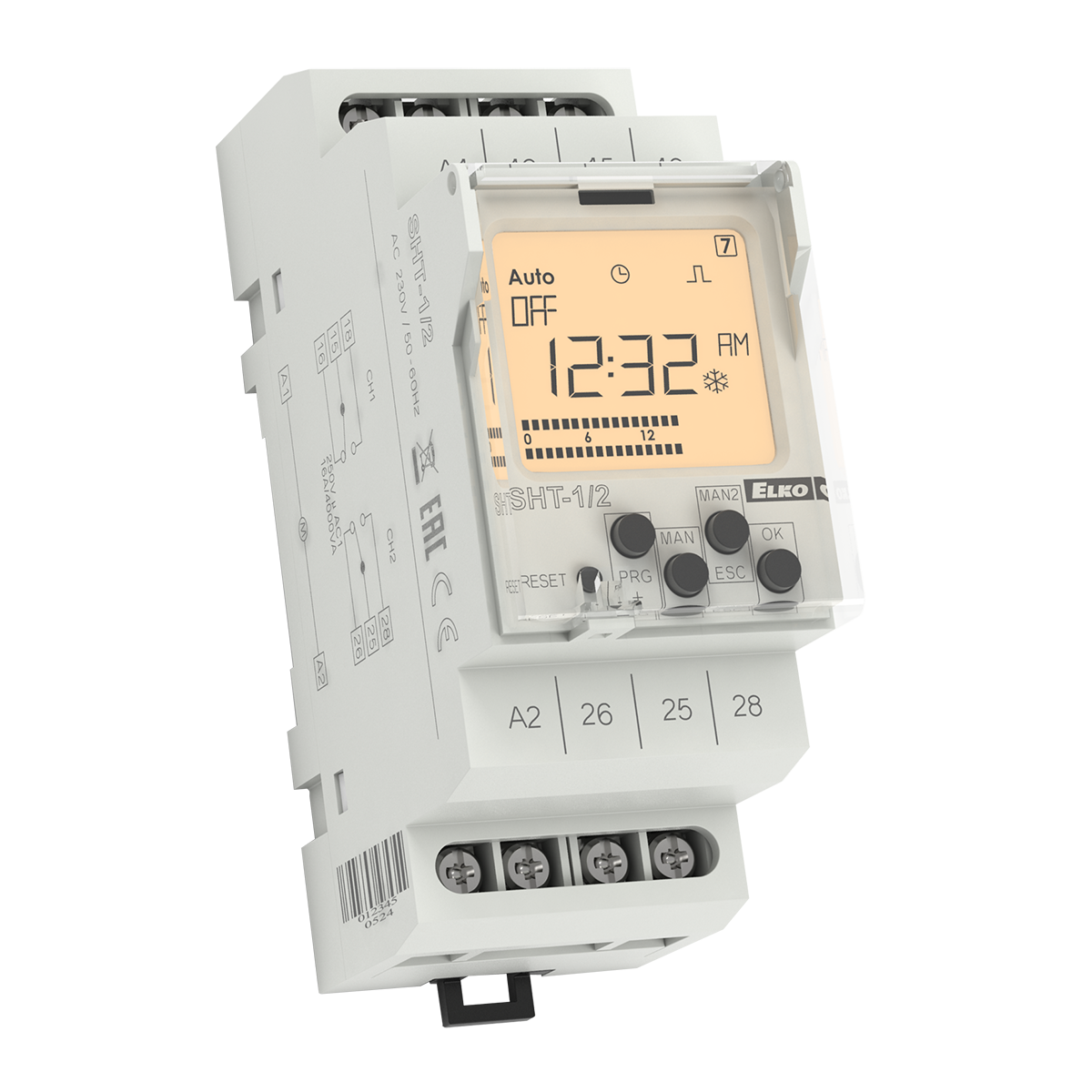

ELKO DIGITAL TIME SWITCH 12-240VAC/DC 2C/O 16A D/W SHT-1/2

Product Code: SHT-1/2

The Digital Time Switch is a versatile device that operates with a universal supply voltage range of AC/DC 12-240V. It features two channels for daily and weekly programming, all in one convenient unit. The switch also has the capability to automatically adjust for summer and winter time changes. It offers multiple switching options, including program (AUTO), constant manual operation, manual change to the next program, or random (CUBE) mode. The switch is known for its high accuracy thanks to its special calibration.

Technical Specifications

Brand ELKO
Accuracy ±1s/day
Battery Backup 3 years
Channels 2
Contacts 2CO
Degree of Protection IP40 (Front Panel)
Display Screen Type LCD
Function Daily/weekly
Mounting Type DIN Rail
Operational Temperature Range (°C) -20 to +55
Pollution Degree 2
Power Consumption (W) 2
Rated Current (A) 16
Standards and Approvals EN 61812-1
Storage Temperature (°C) -30 to +70
Timing Range Programmable 24hrs, 7 days
Universal Supply Voltage AC/DC (V) 12-240
