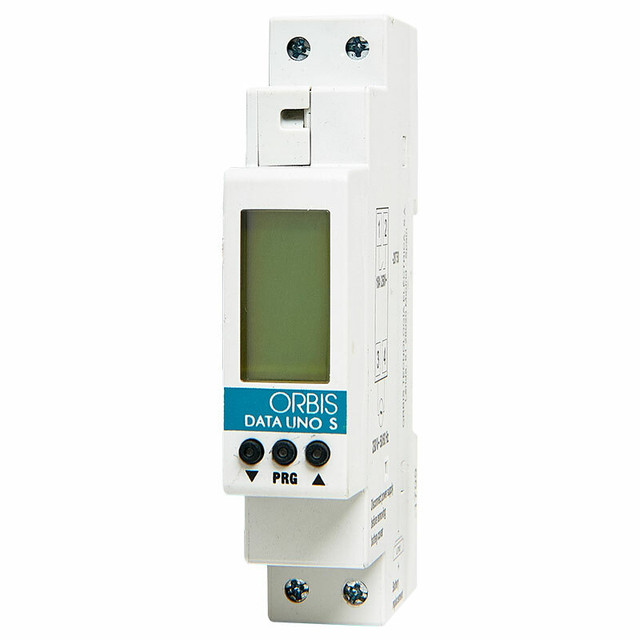

ORBIS DIGITAL TIME SWITCH 230VAC/DC 1NO 16A D/W DATA-UNO-S

Product Code: DATA-UNO-S

The Digital Time Switch is a versatile and user-friendly device designed for engineers. It features simple programming, allowing for easy setup and customization. With its manual override function, users have full control over the switch at any time. The backlit display ensures visibility in all lighting conditions, providing clear information on the operating schedule and relay status. The switch also includes a battery backup feature, ensuring uninterrupted operation even during power outages. Engineered specifically for Australian users, the switch automatically adjusts for daylight savings time. It offers flexible programming options with a choice between 24-hour or 7-day programs. With its robust design, the Digital Time Switch can handle high-power applications with its 16A/250V AC switching capability.

Technical Specifications

Brand ORBIS
Battery Backup 4 years
Channels 1
Contacts 1NO
Degree of Protection IP20
Function Daily/weekly
Maximum Switching Current (A) 16
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 1800
Mounting Type DIN Rail
Nominal Frequency (Hz) 50/60
Operational Temperature Range (°C) -20 to +50
Pollution Degree 2
Power Consumption (W) 1
Rated Current (A) 16
Rated Impulse Withstand Voltage (kV) 2.5
Rated Supply Voltage AC/DC (V) 230V AC
Timing Range Programmable 24hrs, 7 days
Universal Supply Voltage AC (V) 230
