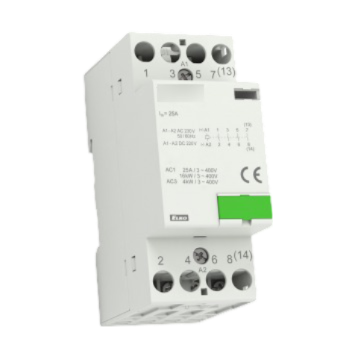

ELKO VS425-40/230V DIN CONTACTOR 4NO, 25A (AC-1), CONTROL 230V AC/DC

Product Code: VS425-40/230V

The Din Contactor is a 4NO contact device with a current rating of 25A (AC1) and a control voltage of 230V AC/DC. It has a width of 2 modules, with each module measuring 17.5mm. The contactor offers IP20 protection and is designed for switching resistive loads and three-phase induction motors. It is well-suited for applications such as heating, lighting, hot water, and storage heating. The Din Contactor can be easily mounted on a DIN Rail.

Technical Specifications

No. of Modules - Width 17.5 mm 2
Brand ELKO
Series VS
Mounting Type DIN Rail
Operational Temperature Range (°C) -5 to +55
Contacts 4NO
Dielectrical Strength (kV) 4
No. of Poles 4P
Rated Insulation Voltage (V) 440
Rated Operational Current AC-1 (A) 25
Rated Supply Voltage AC/DC (V) 230
Dimensions (mm) 35 x 85 x 60
Degree of Protection IP20
