Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 25/25
Cable Cross Section - Flexible (mm²)	Top/Bottom - 16/16
Dimensions (mm)	35W x 85H x 69D
No. of Poles	2
Pole Width (mm)	17.5
Power Loss (W)	5.03/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	10
Pollution Degree	3
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	440
Rated Impulse Withstand Voltage (kV)	4
Rated Operational Voltage DC (V)	125
Rated Operational Voltage AC (V)	415
Maximum Operational Voltage DC (V)	131
Maximum Operational Voltage AC (V)	436
Minimum Operational Voltage AC (V)	12
Voltage Type	AC/DC
Rated Voltage (V)	415
Poles	2P
Current Rating (A)	63
Family	SHD200
AC Voltage (V)	400/415
DC Voltage (V)	125
Inc-Rated Conditional Short Circuit Capacity (kA)	10
Impulse Withstand Voltage (kV/1.2µS)	4
No. of Normally-open Contacts	2
Built-in Depth (mm)	69
Width in Number of Modular Spacings	2
Product Type	Switch Disconnector
Brand	ABB
Series	SHD200
Application	Domestic
Bulbar Cross Section	>=16 sq-mm
Cable Cross Section	25 sq-mm Top, 25 sq-mm Bottom
Colour	RAL 7035 Light Grey
Degree of Protection	IP20
Depth	69 mm
Height	85 mm
Housing Material	Insulation Group II, RAL 7035
Mounting Type	DIN Rail
Number of Poles	2
Pole Width	17.5 mm
Power Loss	5.03 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Voltage	400/415 VAC
Short Circuit Capacity	10 kA
Standards and Approvals	AS/NZS 60947-3
Switching Type	Off Switch
Width	35 mm

Description

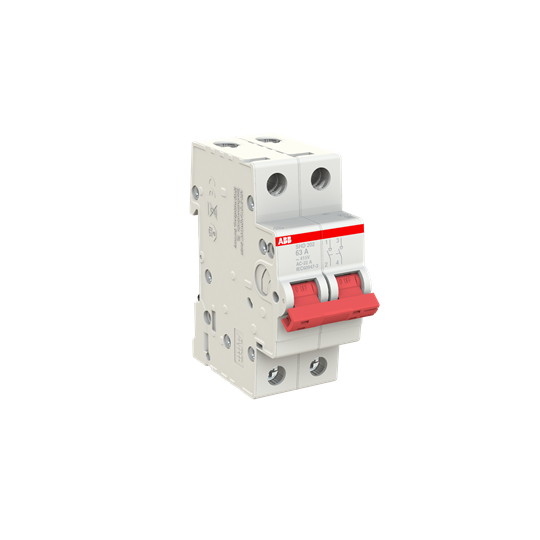

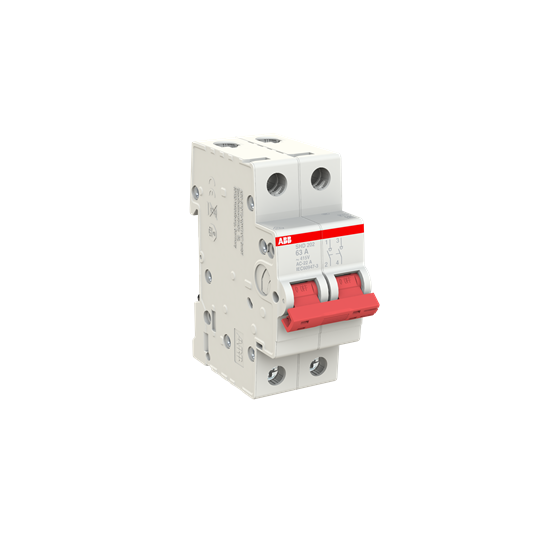

SHD202/63 - Switch Disconnector 2P, 63A
