Impulse Withstand Voltage (kV/1.2µS)	4
Brand	ABB
AC Voltage (V)	400/415
Application	Domestic
Built-in Depth (mm)	69
Cable Cross Section - Flexible (mm²)	Top/Bottom - 16/16
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 25/25
Current Rating (A)	63
Degree of Protection	IP20
Dimensions (mm)	52.5W x 85H x 69D
Family	SHD200
Housing Material	Insulation Group II, RAL 7035
Inc-Rated Conditional Short Circuit Capacity (kA)	10
Maximum Operational Voltage AC (V)	436
Minimum Operational Voltage AC (V)	12
Mounting Type	DIN Rail
No. of Normally-open Contacts	3
No. of Poles	3
Pole Width (mm)	17.5
Poles	3P
Pollution Degree	3
Power Loss (W)	5.03/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	440
Rated Operational Voltage AC (V)	415
Rated Voltage (V)	415
Rated Voltage AC (V)	415
Series	SHD200
Standards and Approvals	AS/NZS 60947-3
Switching Type	Off Switch
Voltage Type	AC
Width in Number of Modular Spacings	3

DIN MCB

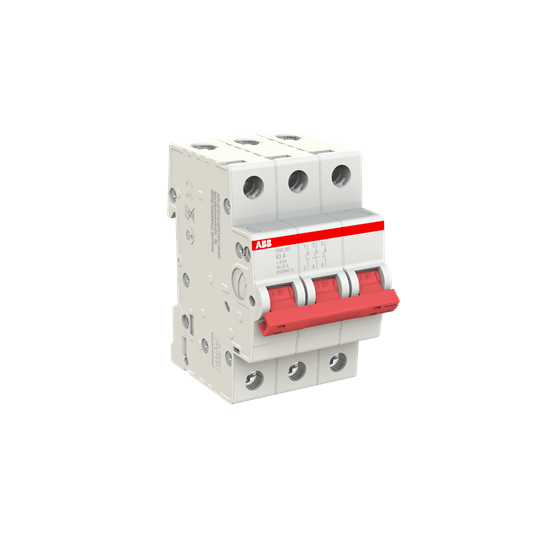

ABB SHD20363 SWITCH DISCONNECTOR 3P 63A 230/400VAC
