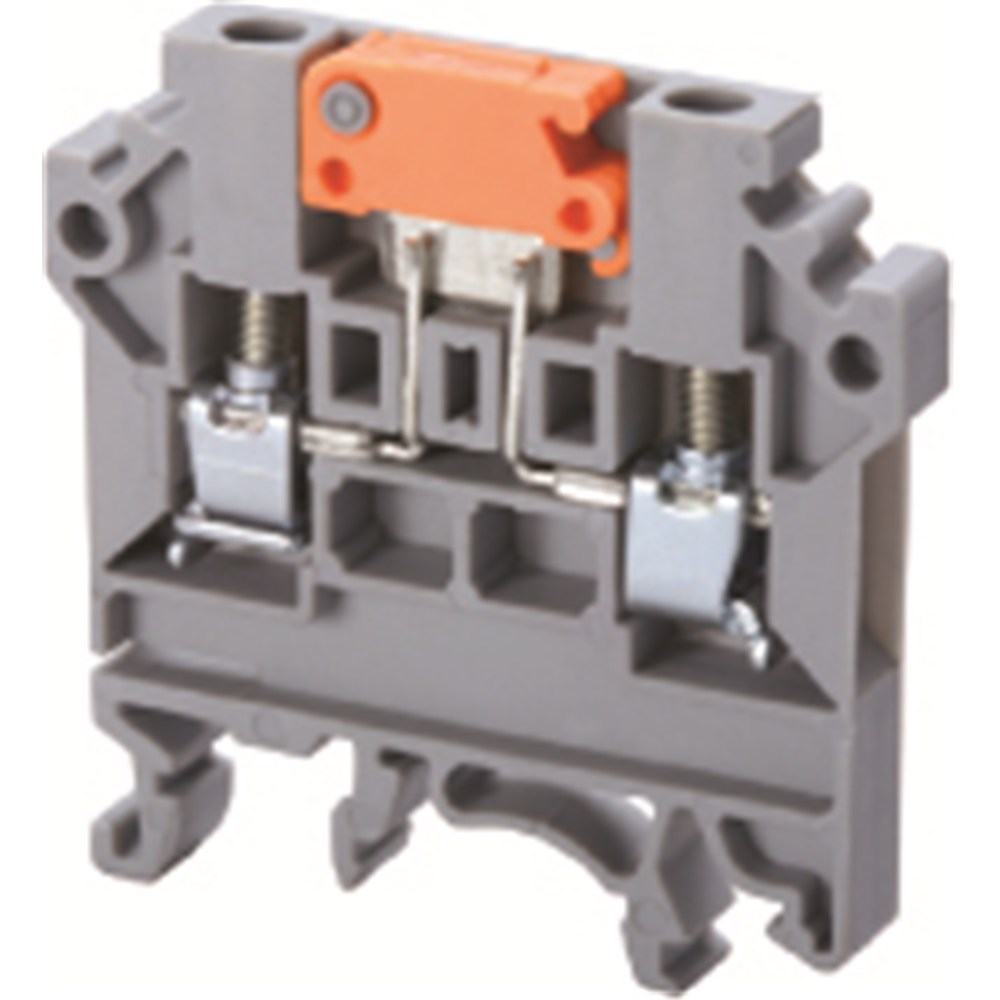

CONNECTWELL CKT4U/4 DISCONNECT & TEST SCREW CLAMP TERMINAL BLOCK 2 IN/2 OUT 800V/17.5A

Product Code: CKT4U/4

This grey Disconnect & test screw clamp terminal block has 2 inputs and 2 outputs. It is designed for stranded conductors with a cross section of 0.2 - 4.0mm². The dimensions of the terminal block are 65mm in length, 6mm in width, and 54.3mm in height. It can handle a voltage of up to 800V and a current of up to 17.5A. This terminal block can be mounted on Din 32, Din 35, and Din 35-15 Rail.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 0.2 - 4.0
Dimensions (mm) 65L x 6W x 54.3H
Mounting Type DIN Rail
Rated Current (A) 17.5
Rated Voltage (V) 800
Screw Size M3
Tightening Torque (Nm) 0.5
