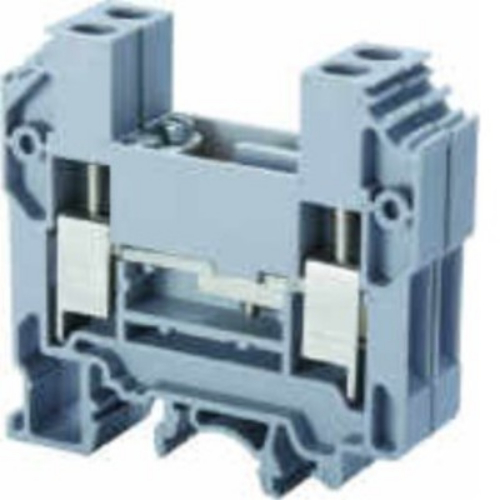

CONNECTWELL DISCONNECT & TEST TERMINAL BLOCK 10.0mm² CDTTUSH

Product Code: CDTTUSH

Technical Specifications

Brand CONNECTWELL
Cable Entry Side Entry
Colour Grey
Conductor Cross Section - Stranded (mm²) 1.5 - 10
Dimensions (mm) 57L X 6W X 59.5H
Function Sliding Type Disconnect and Test
Housing Material Polyamide
Mounting Type DIN rail
Pollution Degree 3
Rated Current (A) 10
Rated Voltage (V) 160
Screw Size M3.5
Tightening Torque (Nm) 1.2
