Motor Protection & Motor Starters

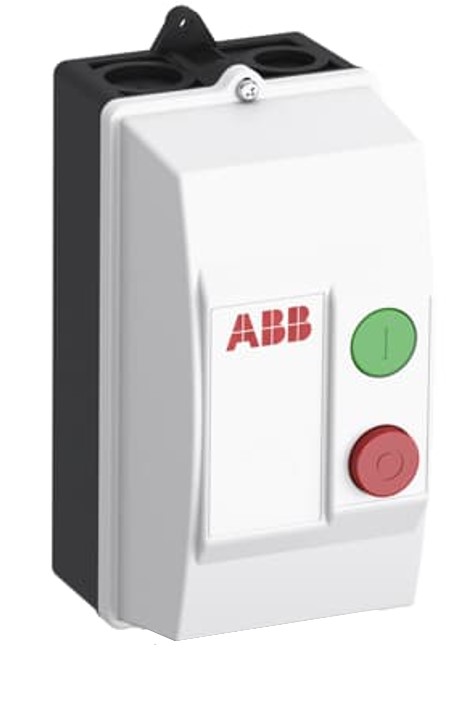

ABB DRAF12-13N ENCLOSED DOL STARTER WITH AF CONTACTOR 5.5kW, CONTROL 100-250VAC

Product Code: DRAF12-13N

Reliable and easy to install DOL Motor starting with a white ABS housing. It features 4 cable entries and a 3-pole AF Contactor. The motor has a rated operational power of 5.5kW at 380/400V AC-3, and the control voltage is 100..250V (50/60Hz). The device also includes clear indication lights: Green "I" for ON and Red "0" for OFF/RESET.

Technical Specifications

Brand ABB
Colour White
Dimensions (mm) 107W x 230H x 131D
IEC - Rated Operational Power AC-3 220-240V (kW) 3
IEC - Rated Operational Power AC-3 380-400V (kW) 5.5
IEC - Rated Operational Power AC-3 500V (kW) 7.5
Maximum Current ? = 40 °C 400V (A) 12
No. of Poles 3P
Rated Control Supply Voltage AC (V) 100 - 250
