ABB DRAF16-13N ENCLOSED DOL STARTER WITH AF CONTACTOR 7.5kW, CONTROL 100-250VAC

Product Code: DRAF16-13N

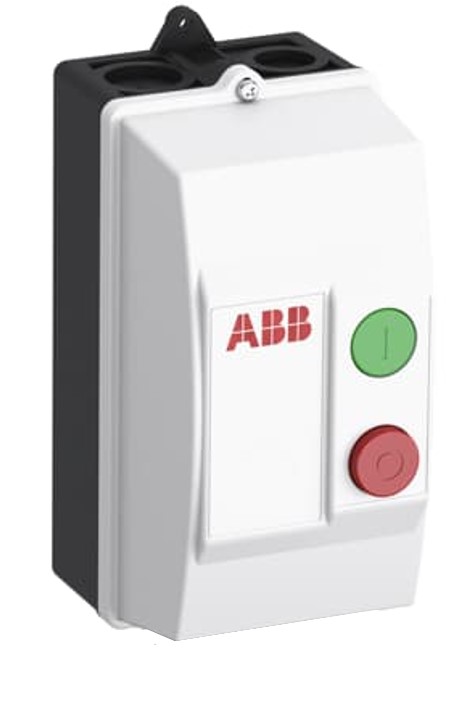

Reliable and easy to install DOL Motor starting with a white ABS housing. It has 4 cable entries and a 3-pole AF Contactor. The motor has a rated operational power of 7.5kW at 380/400V AC-3 and a control voltage of 100..250V (50/60Hz). The device features clear indication with a green "I" for ON and a red "0" for OFF/RESET.

Technical Specifications

Brand ABB
Colour White
Dimensions (mm) 107W x 230H x 131D
IEC - Rated Operational Power AC-3 220-240V (kW) 4
IEC - Rated Operational Power AC-3 380-400V (kW) 7.5
IEC - Rated Operational Power AC-3 500V (kW) 9
Maximum Current ? = 40 °C 400V (A) 18
No. of Poles 3P
Rated Control Supply Voltage AC (V) 100 - 250
