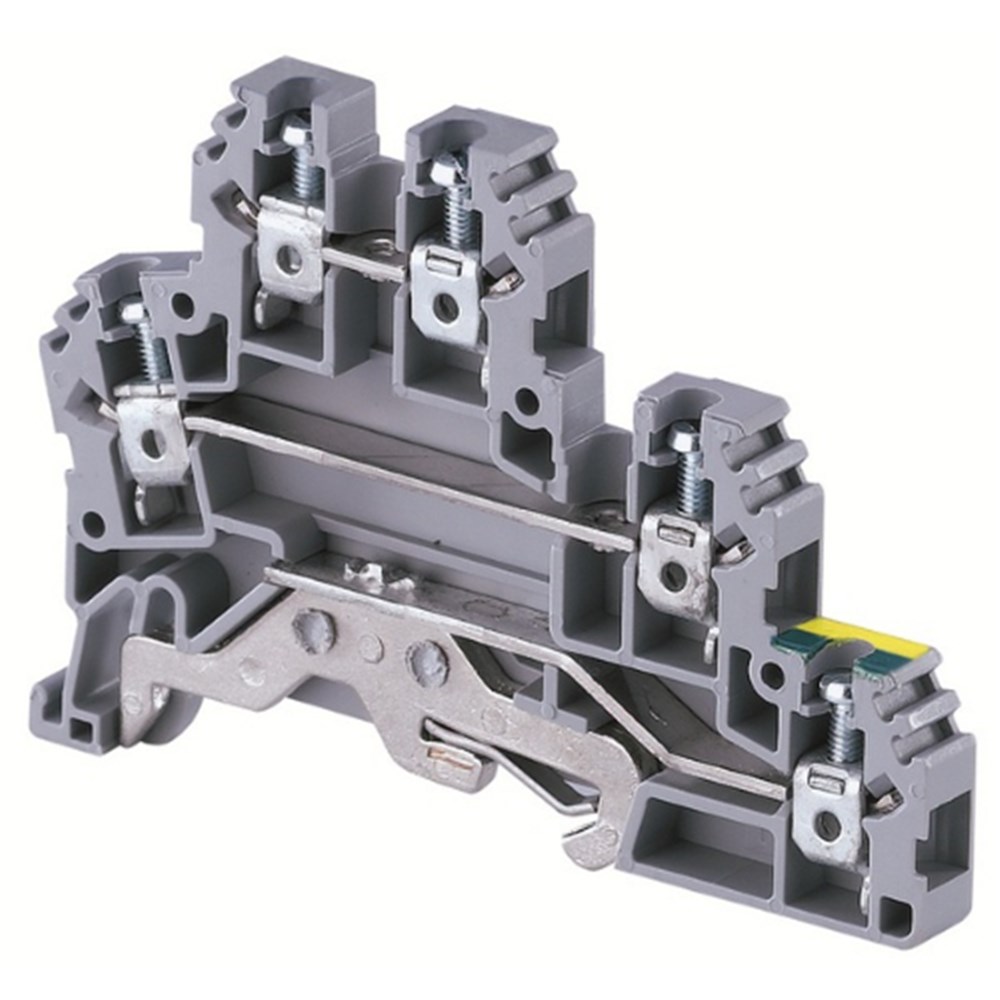

CONNECTWELL CDLG2.5 DOUBLE LEVEL TERMINAL BLOCK WITH EARTH CONNECTION SCREW CLAMP 0.2-2.5mm²

Product Code: CDLG2.5

Double level terminal block with earth connection screw clamp. Conductor cross section: stranded 0.2 - 2.5mm². Dimensions: 71.1mm (L) x 6mm (W) x 53mm (H). colour: grey, green/yellow. Voltage rating: 500V. Current rating: 24A. Double level feed through with earth. Mounting possibility on DIN 35 and DIN 35-15 rail.

Technical Specifications

Brand CONNECTWELL
Colour Grey, Green/Yellow
Conductor Cross Section - Stranded (mm²) 0.2 - 2.5
Dimensions (mm) 71.1L x 6W x 53H
Mounting Type DIN Rail
Rated Current (A) 24
Rated Voltage (V) 500
Screw Size M2.5
Tightening Torque (Nm) 0.4
