When selecting a pushbutton for industrial applications, understanding the technical specifications is crucial to ensure it meets your operational requirements. This pushbutton is designed with practicality and durability in mind, making it suitable for demanding environments such as mining, construction, and heavy industry.
The pushbutton operates at a rated voltage of 220 VDC and features illumination to enhance visibility in low-light conditions. It provides robust protection against environmental factors with an IP66 rating on the front and an IP20 rating at the terminal, ensuring reliability even in harsh settings.
Conforming to multiple standards including EN IEC 60947-1/5-1/5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No. 14 certifications ensures that this product adheres to international safety and performance benchmarks.
With an ambient temperature range from -25 to 70 degrees Celsius, this pushbutton can function effectively across various climates without compromising performance. Its rated insulation voltage stands at a substantial 690 V while offering a rated impulse withstand voltage of up to 6 kV—indicating its resilience against electrical surges.

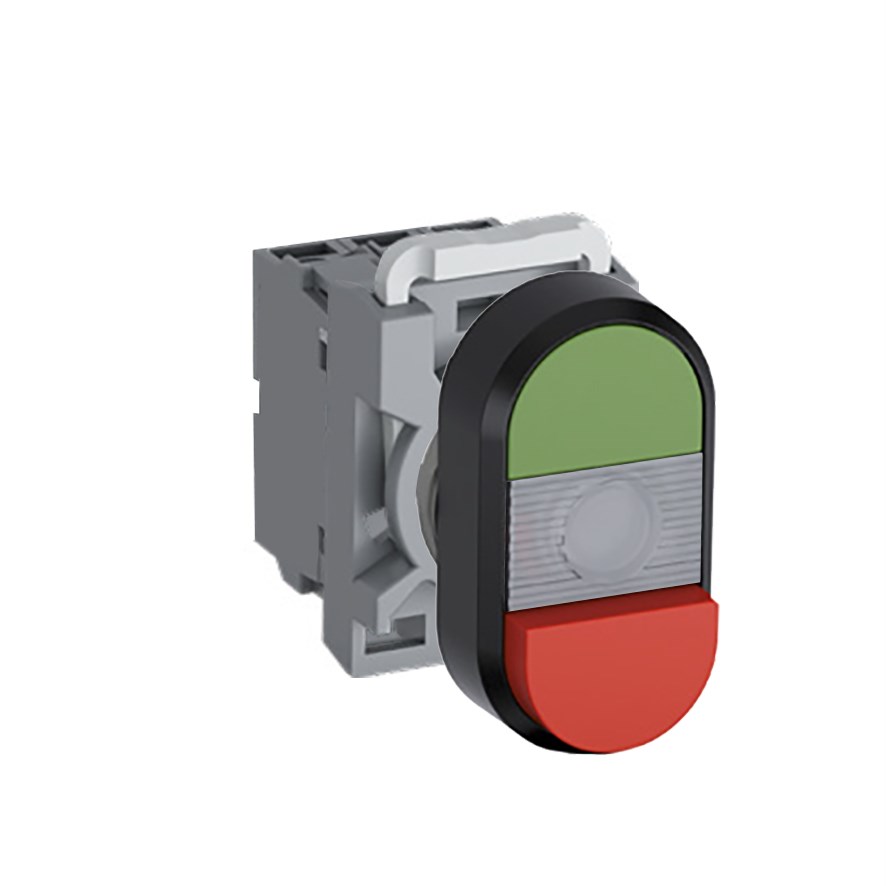

The contact configuration includes both Normally Open (NO) and Normally Closed (NC) contacts (1NO+1NC), providing flexibility in circuit design. The actuator type is available as flush or extended based on user preference or application need. The lamp colour is clear with a built-in LED light source which promises long-lasting illumination without frequent replacements.
This momentary-function pushbutton does not feature text on its legend but uses distinct button colours—green for the upper section and red for the lower section—to convey operational status clearly. Rated for a thermal current of up to 10 A, it supports reliable operation under continuous use.
Constructed with a plastic bezel material for durability while maintaining lightweight properties, this device fits into standard cutouts of size 22 mm—a common dimension facilitating easy integration into existing panels or systems.
Included components are comprehensive: operator unit itself along with contact block holder plus LED block—ensuring you have everything needed right out of the box for installation purposes.
In summary, if you're seeking a dependable solution tailored specifically towards rigorous industrial applications where performance cannot be compromised by environmental challenges or electrical demands then consider this versatile illuminated pushbutton option designed precisely around those needs.
