This industrial-grade control device is designed to meet the rigorous demands of mining, construction, and heavy industry applications. With a rated voltage of 110 VAC/DC, it provides reliable performance in challenging environments. The product's illumination feature includes a built-in LED with a green lamp color for clear visibility, ensuring efficient operation even in low-light conditions.
The device boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal, making it resistant to dust and water ingress. It complies with several international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, along with UL 508 and CSA C22.2 No.14 approvals. This ensures its safety and reliability across various jurisdictions.
Operating within an ambient temperature range from -25 to 70 degrees Celsius, this product is built to withstand extreme temperatures without compromising on functionality. Its rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV.
The contact configuration features one normally open (1NO) and one normally closed (1NC) contact setup which allows for flexible integration into existing systems. The actuator type can be either flush or extended based on user preference or application requirements.

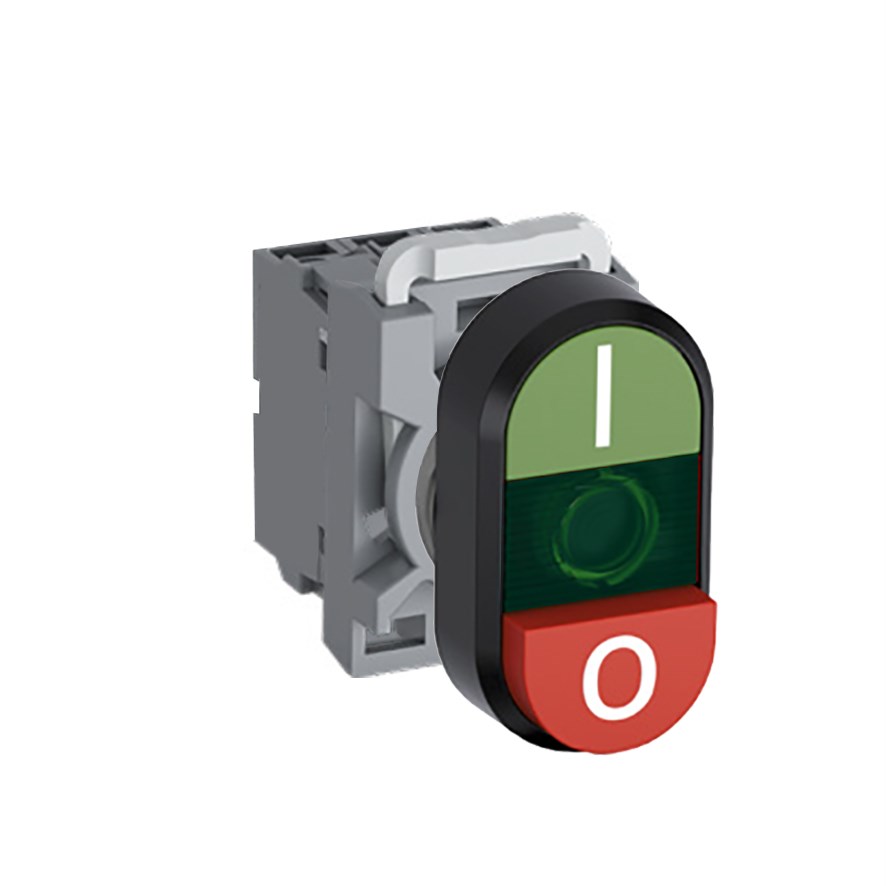

With a rated thermal current of up to 10 A and a cutout size of 22 mm, installation is straightforward while maintaining high electrical performance standards. The button itself comes in two colors: green for the upper section marked 'I' and red for the lower section marked 'O', providing intuitive operation through visual cues.
Constructed with durable plastic bezel material ensures longevity under tough industrial conditions while remaining lightweight enough not to add unnecessary bulkiness during installation processes.
Included components comprise an operator unit alongside essential parts like the contact block holder plus LED block ensuring seamless assembly upon delivery—perfectly suited towards those involved heavily within sectors requiring robust equipment solutions daily!
In summary: This versatile control solution offers exceptional quality backed by comprehensive certifications suitable across multiple industries demanding utmost dependability day-in-day-out operations!
