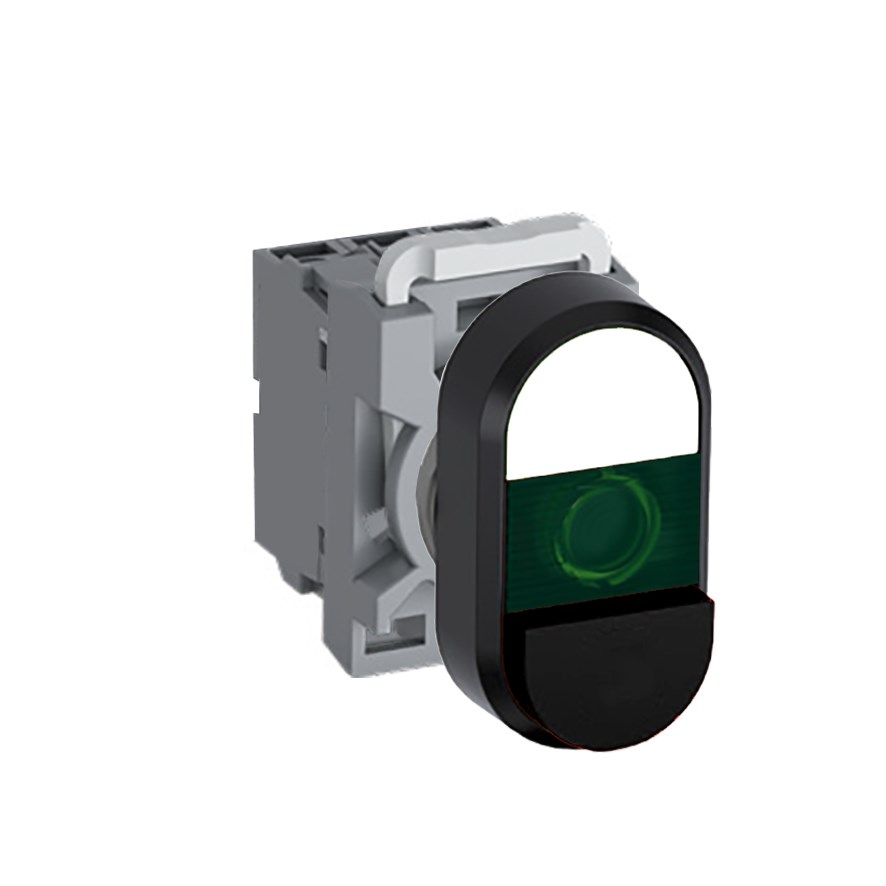

In the demanding environments of mining, construction, and heavy industry, reliability and precision are paramount. This pushbutton is engineered to meet those needs with robust specifications suitable for challenging applications. Designed for versatility, it operates efficiently within a rated voltage range of 110-130 VAC/DC. The dual-color button features an upper white section and a lower black section, providing clear visual differentiation in various lighting conditions.
The pushbutton's illumination is powered by a built-in LED with a green lamp color, ensuring visibility even in dimly lit settings. Its momentary function allows for quick activation without latching, making it ideal for operations requiring temporary engagement.
Durability is assured through its IP66-rated front protection against dust and water ingress, while the terminal holds an IP20 rating. These ratings ensure that the device can withstand harsh environmental conditions typical in industrial settings. Its compliance with multiple standards such as EN IEC 60947 series and UL 508 reflects its adherence to rigorous safety and performance benchmarks.
The actuator type offers flexibility with both flush and extended options available to suit different operational preferences or space constraints. With a contact configuration of 1NO+1NC (one normally open and one normally closed), this pushbutton provides essential control circuit functionality.
Safety is further enhanced by its rated insulation voltage of 690 V along with a substantial rated impulse withstand voltage of 6 kV. Additionally, the device supports a rated thermal current of up to 10 A, accommodating various electrical loads safely.
For ease of installation, it fits into standard cutout sizes at 22 mm diameter holes which are common across many industrial panels. The bezel material constructed from durable plastic ensures longevity while maintaining lightweight properties crucial for easy handling during installation or maintenance activities.
Included components such as the operator unit, contact block holder, contact block itself and LED block simplify setup by providing all necessary parts straight out-of-the-box thus minimizing downtime during replacements or new installations.
Whether you're upgrading existing systems or implementing new ones within your facility this pushbutton stands ready as part of an integrated solution designed specifically around high-demand industries where performance cannot be compromised under any circumstances.
