In the demanding environments of mining, construction, and heavy industry, reliability and durability are paramount when selecting control components. This pushbutton offers a robust solution tailored for such applications. Designed with a focus on functionality and compliance, it stands up to the rigors of industrial use.
Operating at a rated voltage of 110-130 VAC/DC, this illuminated pushbutton ensures clear visibility with its built-in green LED lamp. The device is engineered for resilience, featuring an IP66 degree of protection at the front—ideal for harsh outdoor conditions—and IP20 at the terminal level. It meets rigorous standards including EN IEC 60947 series, UL 508, and CSA C22.2 No. 14 among others, ensuring compliance across various international markets.
The pushbutton operates efficiently within a wide ambient temperature range from -25 to 70 degrees Celsius, making it suitable for diverse environmental conditions. Its electrical specifications include a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV—a testament to its capability in handling high-stress scenarios.
Functionality is straightforward yet effective; it features a momentary action with a contact configuration of one normally open (1NO) and one normally closed (1NC). This setup provides versatility in controlling circuits where both start and stop functions are necessary. The actuator type can be flush or extended depending on user preference or application requirements.

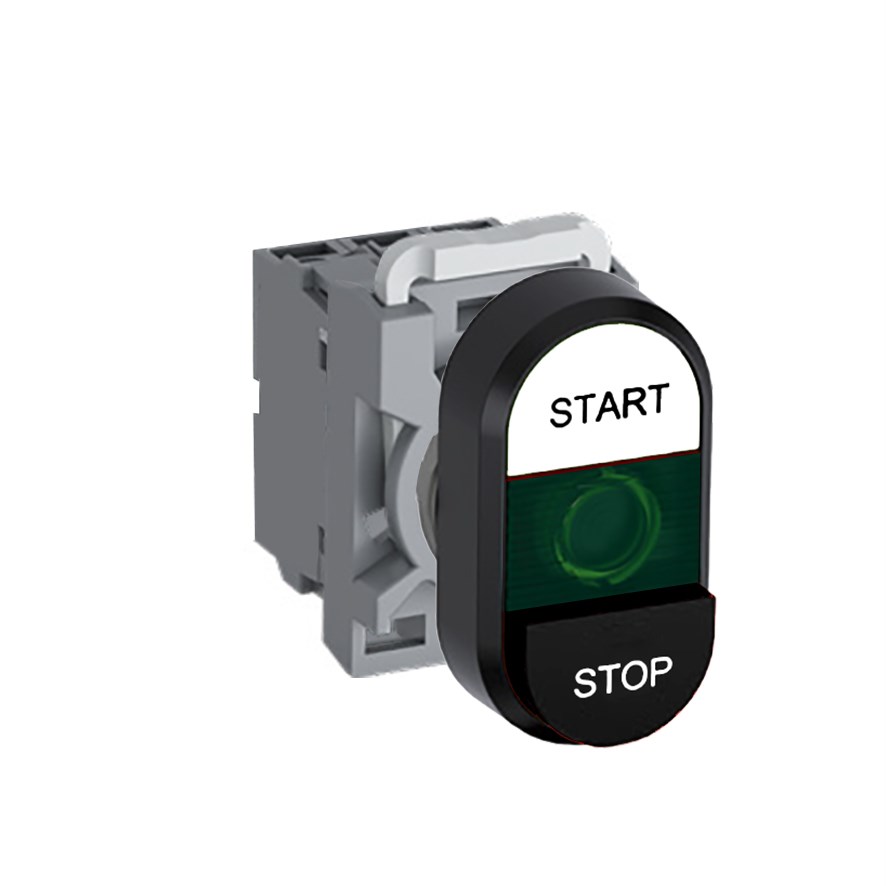

Aesthetically designed for clarity in operation, the button has an upper white section labeled "Start" and a lower black section labeled "Stop," providing intuitive interaction even under low-light conditions thanks to its illuminated design. The bezel material is crafted from durable plastic, contributing to its lightweight yet sturdy build.
Installation is simplified with a standard cutout size of 22 mm while maintaining compatibility with existing setups or new installations alike. Included in the package are essential components: operator unit, contact block, contact block holder, and LED block—all designed to integrate seamlessly into your system.
Overall, this pushbutton represents an ideal choice for professionals seeking reliable performance combined with compliance across global standards—a practical addition that aligns well with technical requirements in demanding industrial settings.
