This accessory is designed to meet the rigorous demands of mining, construction, and heavy industry applications. It combines robust functionality with compliance to a range of international standards and approvals, ensuring reliability and safety in various operational environments.
Operating at a rated voltage of 110 VAC/DC, this illuminated accessory features an IP66 degree of protection on the front and an IP20 rating at the terminal. This makes it suitable for use in harsh conditions where dust or water ingress could be a concern. The ambient temperature range from -25 to 70 degrees Celsius further enhances its versatility across diverse climates.
The contact configuration includes two normally closed (2NC) contacts with a rated thermal current of 10 A. Additionally, it boasts a high-rated impulse withstand voltage of 6 kV and a rated insulation voltage of 690 V, offering assurance against electrical surges.
Crafted with practicality in mind, the actuator type is available as either flush or extended. The lamp color is green, utilizing built-in LED technology for efficient illumination. The light blocks are specified as LED blocks which contribute to long-lasting performance with minimal maintenance requirements.
The bezel material is plastic, providing durability while keeping weight manageable. With a cutout size of 22 mm, installation into panels or control systems is straightforward and adaptable to standard configurations.

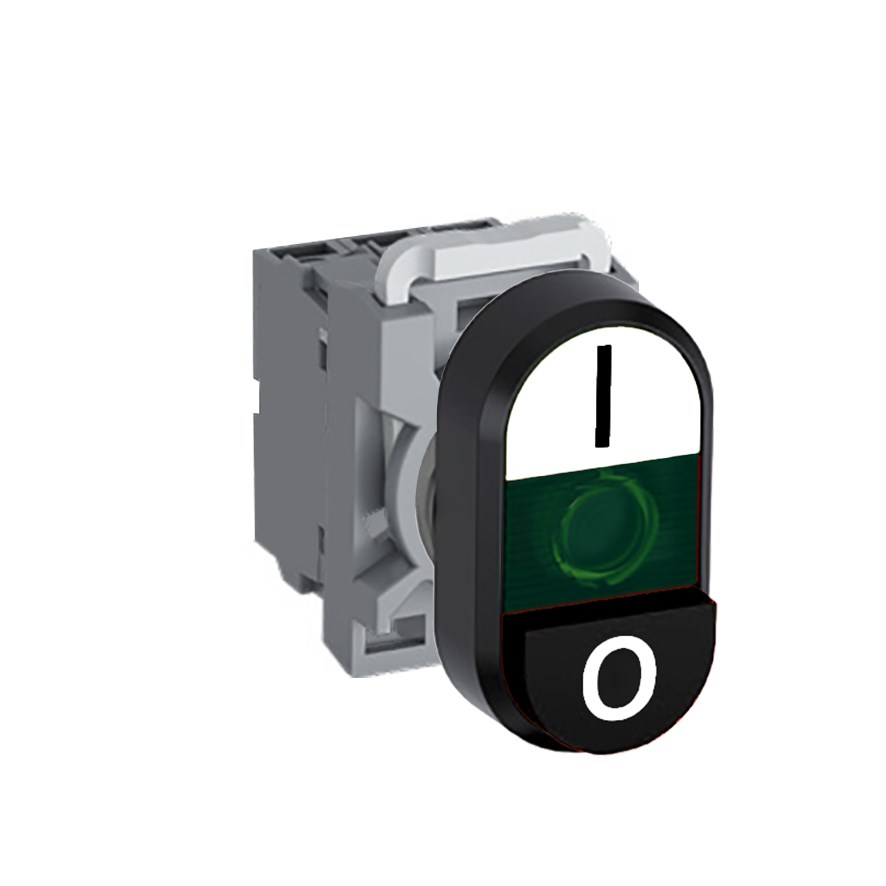

For ease of operation, the button features distinct coloring: white for the upper section marked with "I" and black for the lower section marked "O". This clear legend ensures intuitive use even in low-light conditions.
Included components such as the operator, contact block holder, contact block itself, and LED block make this product comprehensive out-of-the-box—ready for immediate deployment within existing systems without additional purchases needed.
In summary, this accessory stands out due to its compliance with multiple standards including EN IEC 60947-1/5-1/5-5; EN IEC 60073; EN IEC 60529; EN 50013; DIN 40050-9; UL508; CSA C22.2 No.14 ensuring adherence to global quality benchmarks while delivering dependable performance tailored specifically towards demanding industrial sectors like mining and construction.
