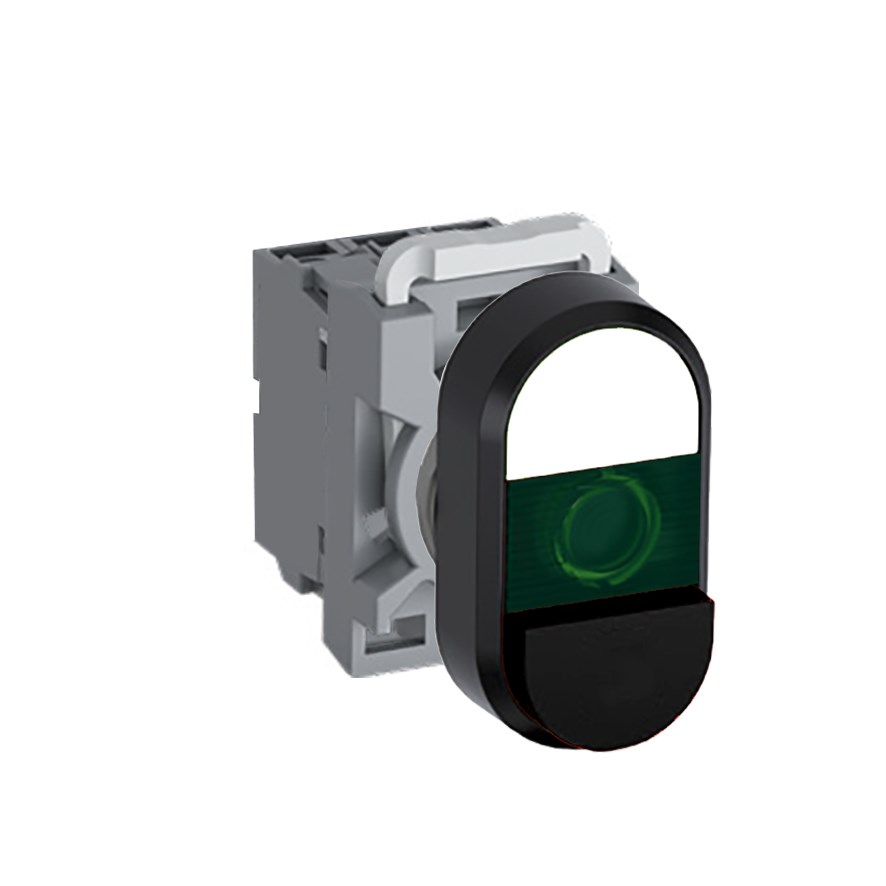

When selecting components for industrial and commercial applications, understanding the specifics of each product is crucial. This illuminated pushbutton switch offers a robust solution for demanding environments such as mining, construction, and heavy industry.
The device operates at a rated voltage of 110 VAC/DC, ensuring compatibility with common power systems. It boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal, safeguarding against dust and water ingress in harsh conditions.
Adhering to multiple standards like EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications guarantees that this component meets rigorous international safety and performance requirements.
Designed to operate efficiently across a wide ambient temperature range from -25°C to +70°C ensures reliability in varying climates. The rated insulation voltage stands at an impressive 690 V while the device can withstand impulse voltages up to 6 kV providing resilience against electrical surges.
This pushbutton features a contact configuration of two normally closed (2NC) contacts which are ideal for fail-safe operations. With a rated thermal current capacity of up to 10 A it accommodates substantial electrical loads without compromising on performance.
The actuator type is versatile offering both flush and extended options catering to different installation preferences or space constraints. The built-in LED illumination provides clear visibility with its green lamp colour enhancing operational efficiency especially in low-light environments.
Aesthetically designed with a white upper button contrasting against a black lower section it fits seamlessly into modern control panels while maintaining functionality. Constructed with durable plastic bezel material it ensures longevity even under frequent use.
Installation is straightforward thanks to its standard cutout size of 22 mm making retrofitting or new installations hassle-free. The light block utilizes efficient LED technology reducing energy consumption over traditional lighting methods contributing to overall cost savings in long-term operation.
Included within this package are all necessary components: operator contact block contact block holder and LED block simplifying procurement processes by offering everything needed for setup in one convenient bundle.
In summary whether you're operating within mining construction or any other heavy industrial sector this illuminated pushbutton switch presents itself as an excellent choice combining durability compliance versatility and ease-of-use into one comprehensive package suitable for diverse applications across Australia’s demanding industrial landscape.
