The product in question is a robust and reliable solution tailored for demanding industrial environments, particularly suited to mining, construction, and heavy industry applications. With its rated voltage of 110 VAC/DC, this device ensures compatibility with a wide range of electrical systems.
Designed with user safety and durability in mind, it boasts an impressive degree of protection: IP66 at the front to guard against dust and water ingress, and IP20 at the terminals for additional safety. It meets several stringent standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications.
This product operates efficiently across a broad ambient temperature range from -25 to 70 degrees Celsius. Its rated insulation voltage stands at a substantial 690 V while featuring a rated impulse withstand voltage of up to 6 kV—indicative of its resilience against transient overvoltages.
The contact configuration is set as two normally open (2NO), providing straightforward integration into existing systems where such configurations are necessary. The actuator type offers versatility with both flush and extended options available depending on user preference or specific application needs.

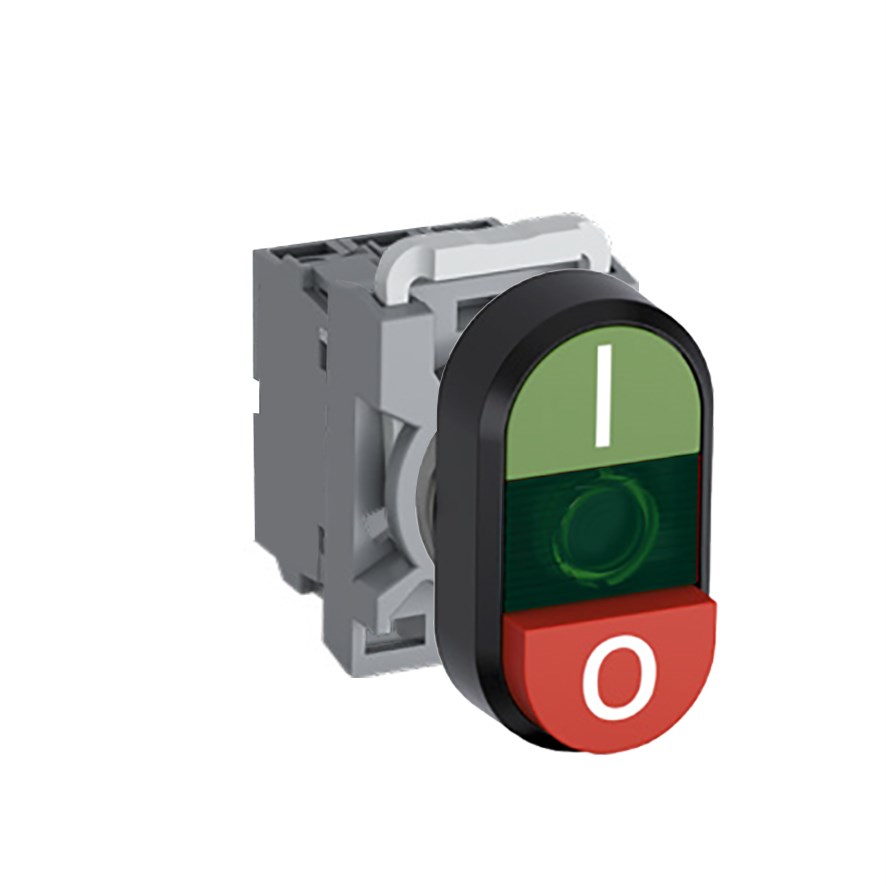

Illumination is provided by a built-in LED lamp which emits green light through the upper section while the lower section remains red when off—ensuring clear visibility even in low-light conditions. The lamp's color scheme aligns with common operational signaling conventions: "I" for on (upper) and "O" for off (lower).
Constructed using durable plastic bezel material, this product maintains structural integrity under harsh conditions without compromising performance or safety. The cutout size is standardized at 22 mm allowing seamless installation into most control panels or consoles.
Included components cover all essentials needed for setup: operator unit itself alongside contact block holder plus LED block ensuring quick assembly upon delivery without requiring additional purchases.
In summary if your operations demand reliability under tough conditions this illuminated switch offers peace-of-mind performance backed by comprehensive compliance credentials making it an ideal choice within its intended sectors.
