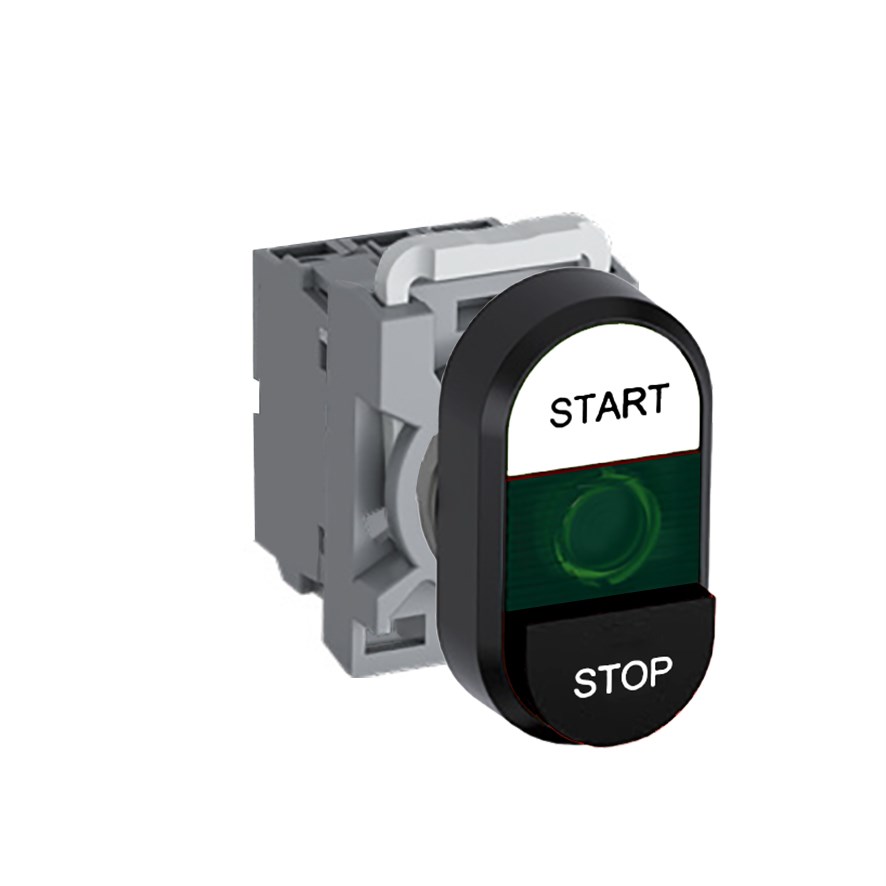

ABB MPDIEGWBS611 Illuminated Double Pushbutton Kit Flush/Extended Momentary Grn Start/Stop Wht/Blk 220VDC 1NO+1NC

Product Code: MPDIEGWBS611

  • Illuminated pushbutton with green LED
  • IP66 front protection for harsh environments
  • Operates at -25 to 70°C ambient temperature
  • Flush/extended actuator with momentary function
  • Rated voltage: 220 VDC, insulation: 690 V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Upper/Lower Button Text START/STOP
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/extended design. It features a white upper actuator for start and a black lower actuator for stop. The kit includes a green indicator with text. The integrated LED is green and operates at 220V DC. The contact configuration is 1NO+1NC. This kit belongs to the modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
