This industrial-grade push button switch is designed to meet the rigorous demands of mining, construction, and heavy industry applications. With a rated voltage of 12 VAC/DC, it offers versatility in both AC and DC circuits. The switch features an IP66 front degree of protection, ensuring robust resistance against dust and water ingress, making it suitable for harsh environments. At the terminal level, it maintains an IP20 rating.
The product adheres to multiple standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and more. These certifications underscore its reliability and compliance with international safety standards such as UL 508 and CSA C22.2 No. 14.
Operating efficiently within an ambient temperature range from -25 to 70 degrees Celsius, this switch is built to withstand extreme conditions without compromising performance. It boasts a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV—features that enhance its durability under electrical stress.
The contact configuration includes two normally open (2NO) contacts with a rated thermal current capacity of up to 10 A. This ensures dependable operation in various electrical setups.
A standout feature is its illumination capability: the built-in LED lamp emits a yellow light that enhances visibility even in low-light conditions. The actuator type can be either flush or extended based on user preference or application needs.

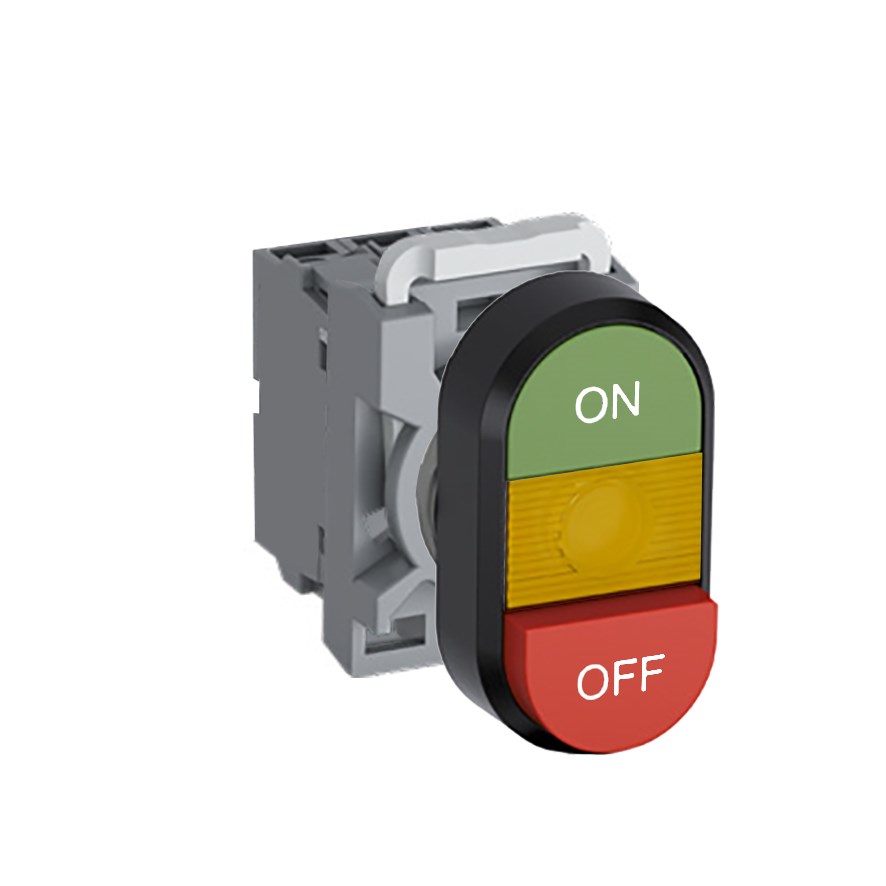

The legend markings are practical for quick identification: "On" at the upper section with green color coding and "Off" at the lower section marked by red color coding—a straightforward visual cue system that reduces operational errors.
Constructed with a durable plastic bezel material, this switch integrates seamlessly into panels requiring a standard cutout size of 22 mm. The inclusion of components like the operator unit, contact block holder, contact block itself along with the LED block simplifies installation processes.
In summary, this push button switch combines robust engineering with practical design elements tailored for challenging industrial contexts where reliability is paramount.
