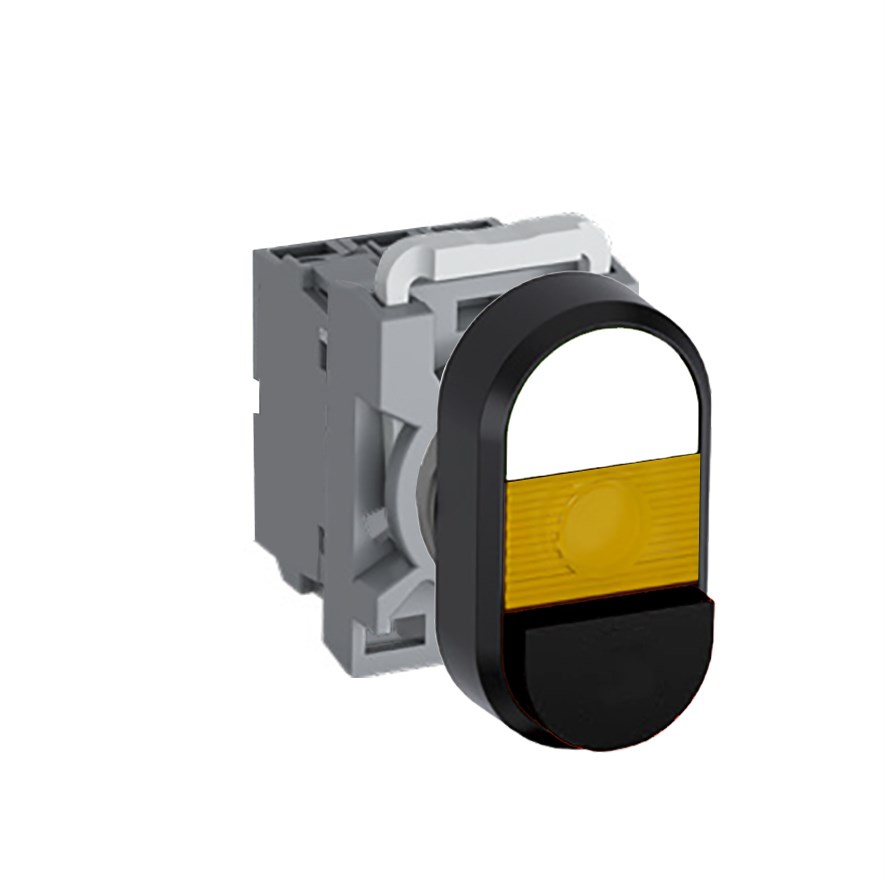

ABB MPDIEYWB602 Illuminated Double Pushbutton Kit Flush/Extended Yellow White/Black 220VDC 2NC LED Block

Product Code: MPDIEYWB602

  • Illuminated with built-in yellow LED
  • IP66 front protection, durable in harsh conditions
  • Operates in -25 to 70°C environments
  • Flush/extended actuator design
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 220 VDC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Yellow
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
