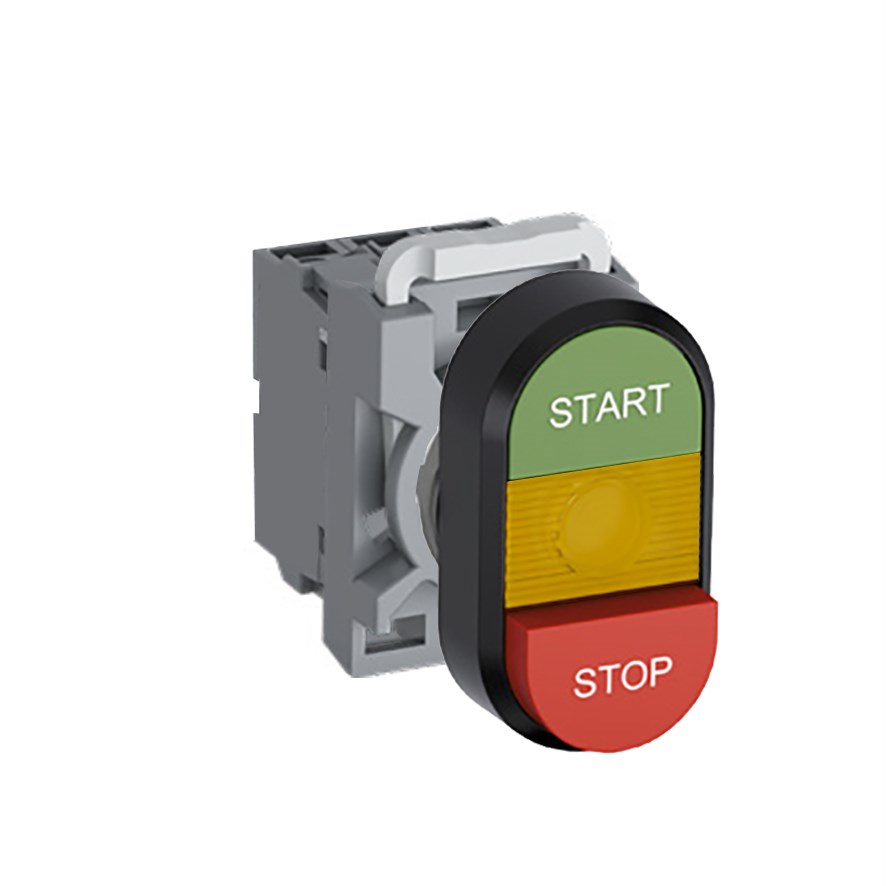

ABB MPDIEYGRS111 Illuminated Double Pushbutton Kit Flush/Extended Yellow Green/Red 24VAC/DC 1NO+1NC LED Block

Product Code: MPDIEYGRS111

  • Illuminated pushbutton with built-in LED
  • IP66/IP20 protection for durability
  • Operates in -25 to 70°C environments
  • Suitable for mining and heavy industry
  • Features 1NO+1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Upper/Lower Button Text START/STOP
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Yellow
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type Built-in LED
LED Colour Yellow
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Yellow Indicator is a versatile and reliable product designed for engineers. It operates on 24VAC/DC power and features an upper-green and lower-red flush/extended design. The pushbutton has 1 normally open (NO) and 1 normally closed (NC) contact, providing flexibility in usage. Additionally, it includes texts for "Start" and "Stop" functions. This kit comes complete with the operator, contact block, and contact block holder, making it convenient for installation. Made from modular plastic, this product is durable and suitable for various applications.
