The pushbutton described here is a robust and reliable component designed for demanding industrial environments. Its versatility makes it suitable for applications in mining, construction, and heavy industry. With a rated voltage of 230 VAC/DC, this pushbutton ensures compatibility with standard power systems while maintaining operational efficiency.

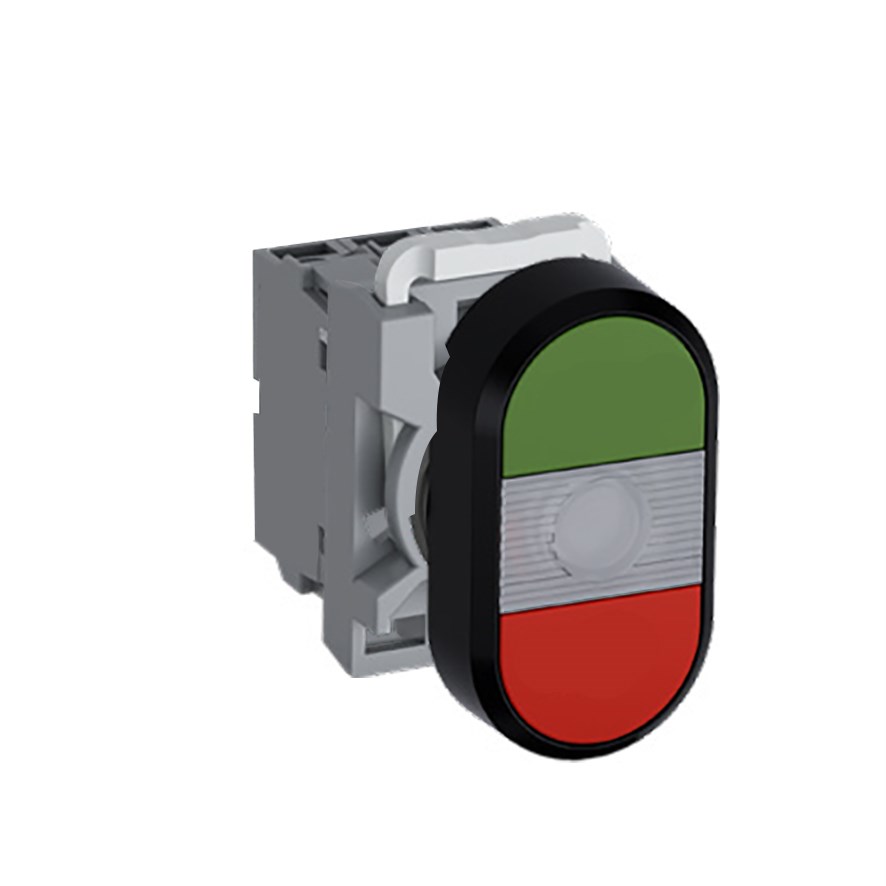

One of the standout features of this pushbutton is its illumination capability, thanks to a built-in LED lamp with a clear lens. The dual-color button design—green on the upper section and red on the lower—provides intuitive visual feedback, enhancing operational safety and usability.
Engineered to withstand harsh conditions, the pushbutton boasts an IP66 degree of protection at the front, ensuring resistance against dust and powerful water jets. However, it's important to note that the terminal side has an IP20 rating. This level of protection makes it ideal for outdoor or rugged environments where exposure to elements is common.
In terms of compliance and standards, this product meets several international requirements including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. It also adheres to UL 508 and CSA C22.2 No. 14 standards for North American markets.
The pushbutton operates efficiently across a wide ambient temperature range from -25°C to +70°C making it adaptable to various climates without compromising performance. A rated insulation voltage of 690 V further enhances its safety profile by providing an additional layer of electrical insulation.
With a contact configuration of 1NO+1NC (one normally open contact plus one normally closed), users can ensure precise control over their systems' operations whether starting or stopping machinery or processes.
Designed with practicality in mind, the actuator type is flush/flush allowing for seamless integration into control panels without protruding parts that could be damaged or accidentally activated. The bezel material is plastic which offers durability while keeping costs manageable.
Featuring a cutout size of 22 mm this pushbutton fits standard panel configurations facilitating straightforward installation or replacement tasks minimizing downtime during maintenance activities.
Included in this package are essential components such as an operator contact block contact block holder along with an LED block simplifying procurement logistics by providing everything needed right out-of-the-box reducing time spent sourcing separate parts individually
Overall if you're seeking dependable performance under tough conditions consider integrating this illuminated pushbutton into your system's control interface ensuring both functionality reliability when you need them most
