Specifications

Contacts	1NO + 1NC
Rated Voltage DC (V)	12
LED Block Rated Voltage	12 VDC
Upper/Lower Button Text	No Text/No Text
Bezel Material	Plastic
Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Flush
Ambient Temperature	-25 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Plastic
Button Colour	White (Upper), Black (Lower)
Colour	Clear
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Clear
Lamp Type	Built-in LED
Legend	No Text
Light Blocks Type	LED Block
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

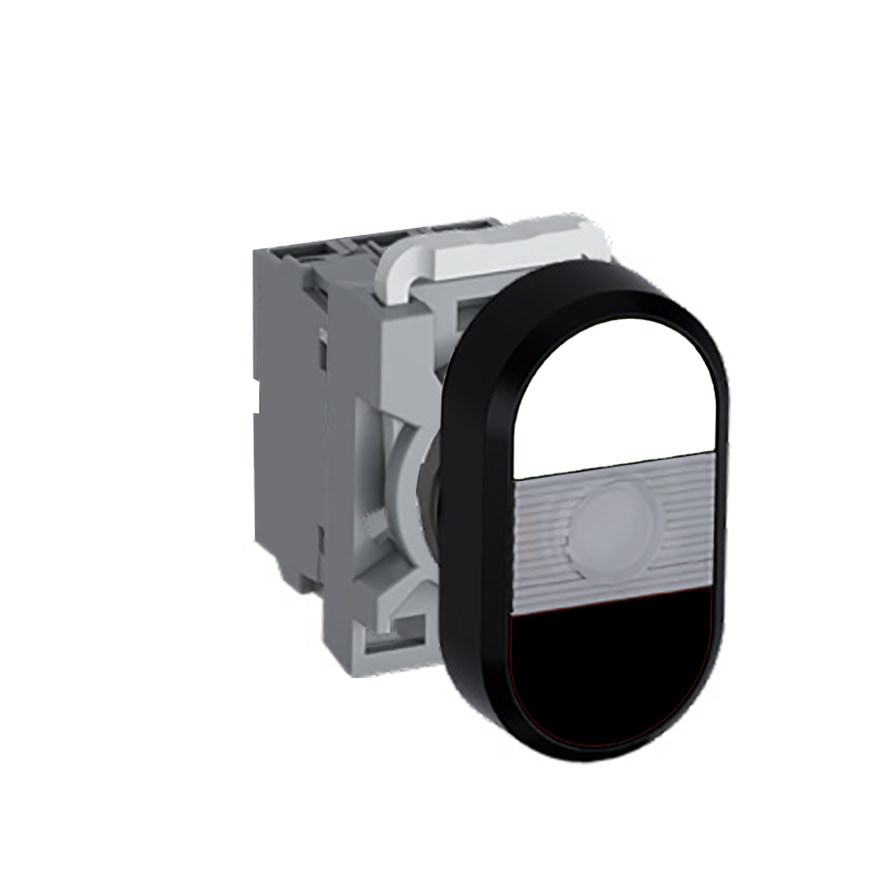

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a white upper actuator and a black lower actuator. The clear indicator does not have any text. The kit includes an integrated white LED that operates on 12V DC power. The contact configuration is 1 normally open (NO) and 1 normally closed (NC). This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPDIFCWB011 Illuminated Double Pushbutton Kit Flush/Flush Momentary Clear White/Black 12VAC/DC 1NO+1NC

Product Code: MPDIFCWB011
