When selecting components for industrial applications, the right pushbutton can make a significant difference in operational efficiency and safety. This particular pushbutton is designed to meet the rigorous demands of mining, construction, and heavy industry environments.
The pushbutton operates at a rated voltage of 220 VDC and features an illuminated design that enhances visibility in various lighting conditions. The illumination is provided by a built-in LED with a clear lamp color, ensuring long-lasting performance and minimal maintenance.
With its robust degree of protection—IP66 on the front side and IP20 at the terminal—this pushbutton is well-suited for harsh environments where dust and water resistance are crucial. These ratings ensure reliable operation even under challenging conditions.
Conforming to multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, and CSA C22.2 No.14 underscores its compliance with international safety benchmarks.
Operating comfortably within an ambient temperature range from -25 to 70 degrees Celsius makes this pushbutton versatile for use across diverse climates without compromising functionality or durability.
The electrical specifications include a rated insulation voltage of 690 V and a rated impulse withstand voltage of up to 6 kV. Its contact configuration comprises one normally open (1NO) and one normally closed (1NC) contact setup. Additionally, it supports a rated thermal current of up to 10 A.

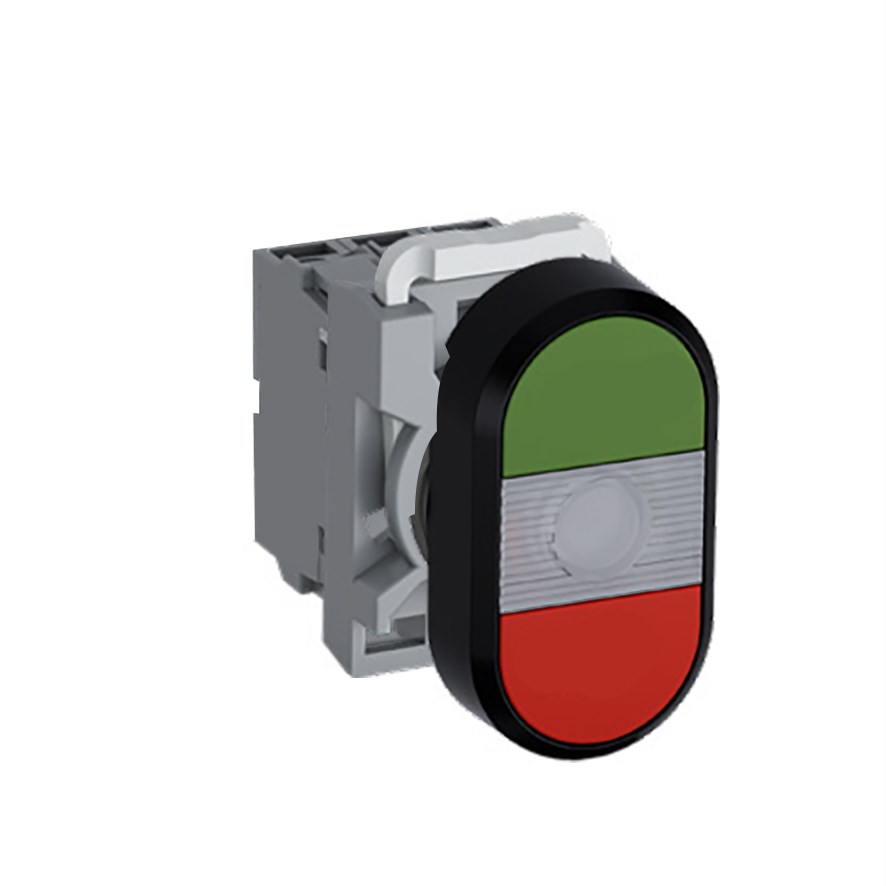

Aesthetically practical yet functional in design—the flush actuator type ensures easy operation while maintaining a sleek profile. The button itself features dual colors: green on the upper section for standard operations or go commands and red on the lower section typically used for stop functions or alerts.
Constructed with user convenience in mind—it includes all necessary components: operator unit itself along with contact block holder plus LED block assembly making installation straightforward whether replacing existing setups or implementing new systems altogether
The bezel material crafted from durable plastic guarantees longevity while maintaining lightweight properties suitable during extended periods use especially critical industries like mining where equipment reliability paramount importance
Designed specifically fit into standard cutout size measuring precisely twenty-two millimeters diameter facilitates seamless integration existing control panels minimizing downtime associated retrofitting processes
Overall this momentary function push-button offers comprehensive solution those seeking dependable component capable handling demanding tasks found within heavy-duty sectors confidently backed by adherence stringent regulatory criteria ensuring peace mind knowing your investment protected against unforeseen circumstances
