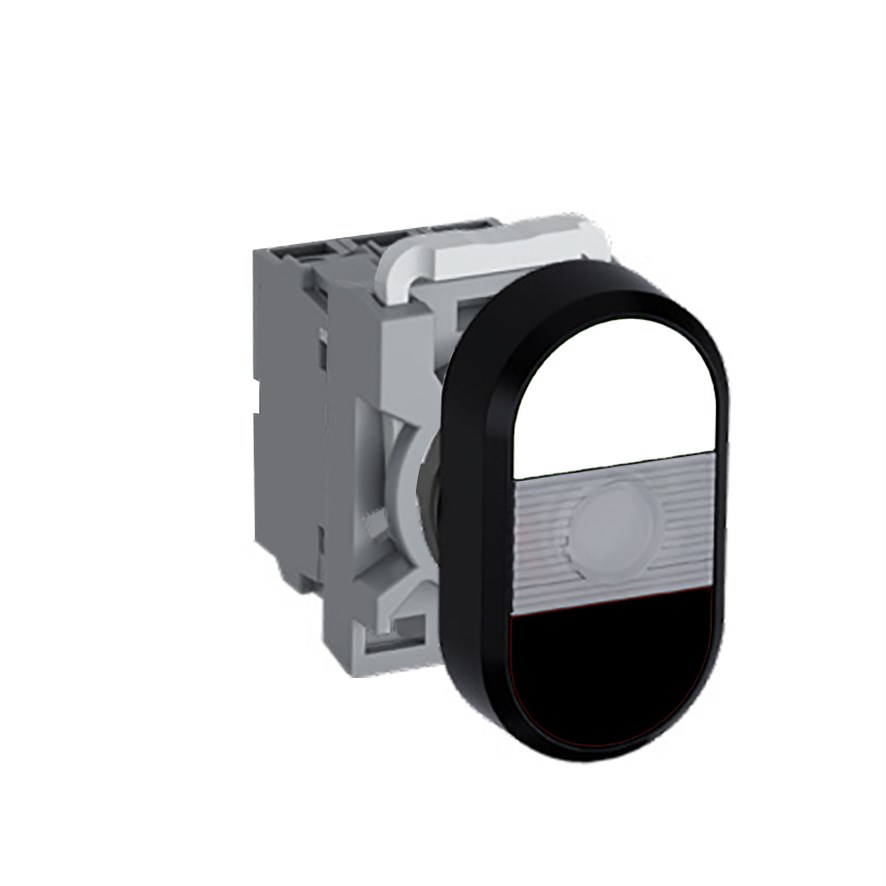

ABB MPDIFCWB611 Illuminated Double Pushbutton Kit Flush/Flush Momentary Clear White/Black 220VDC 1NO+1NC

Product Code: MPDIFCWB611

  • Illuminated pushbutton with clear LED lamp
  • Durable IP66 front protection rating
  • Operates in -25 to 70°C environments
  • Suitable for mining and heavy industry use
  • Features a 1NO+1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Clear
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a white upper actuator and a black lower actuator. The clear indicator does not have any text. The kit includes an integrated white LED and operates at 220V DC. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. The pushbutton is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
