This robust accessory is designed for demanding environments, making it an ideal choice for those in mining, construction, and heavy industry sectors. Its versatility and durability are underscored by its compliance with several key standards such as EN IEC 60947-1, EN IEC 60947-5-1, and UL 508 among others. These certifications ensure that the product meets rigorous safety and performance criteria.

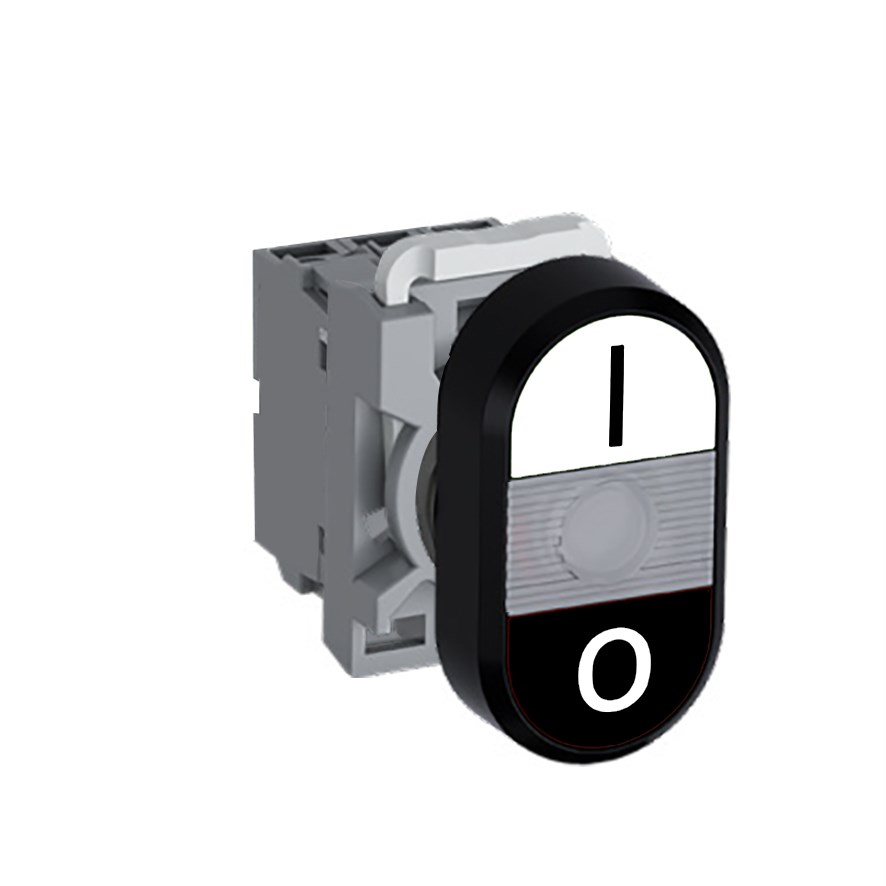

Operating at a rated voltage of 24 VAC/DC, this accessory features an illuminated actuator type that is flush/flush with a clear built-in LED lamp. This ensures visibility even in low-light conditions. The illumination is complemented by a dual-color button design—white on the upper part marked with "I" and black on the lower part marked "O"—for intuitive operation.
The product boasts impressive electrical specifications including a rated insulation voltage of 690 V and a rated thermal current of 10 A. It also has a contact configuration of 1NO+1NC which provides flexibility in circuit design. An important feature to note is its rated impulse withstand voltage of 6 kV which enhances its resilience against transient overvoltages.
In terms of environmental protection, this accessory offers an IP66 rating on the front side ensuring protection against dust ingress and powerful water jets while the terminal side holds an IP20 rating for basic protection against finger access. This makes it suitable for harsh outdoor conditions or industrial settings where exposure to elements is common.
The ambient temperature range from -25 to 70 degrees Celsius ensures reliable performance across various climatic conditions without compromising functionality or safety.
Constructed with user-friendly installation in mind, it fits into standard cutout sizes of 22 mm making replacements or new installations straightforward tasks. The bezel material made from durable plastic adds to its longevity while maintaining cost-effectiveness.
Included components such as the operator, contact block, contact block holder, and LED block provide everything needed for seamless integration into your system without requiring additional purchases.
Overall this accessory combines functionality with reliability making it well-suited for applications requiring consistent performance under challenging conditions.
