When selecting a pushbutton for your industrial or commercial needs, understanding the technical specifications is crucial. This pushbutton is designed for robust applications, offering reliability and efficiency in demanding environments such as mining, construction, and heavy industry.
This illuminated pushbutton operates at a rated voltage of 24 VAC/DC, making it versatile for various electrical systems. The device boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal. This ensures that the button is dust-tight and protected against powerful water jets while maintaining safety at the terminal level.
Conforming to multiple standards like EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 certifications guarantees compliance with international safety and performance regulations.
With an ambient temperature range from -25 to 70 degrees Celsius, this pushbutton can withstand harsh environmental conditions without compromising functionality. The rated insulation voltage of up to 690 V further enhances its suitability for high-voltage applications.
The contact configuration includes a single normally open (NO) and a single normally closed (NC) contact setup which provides flexibility in control circuit design. Additionally, it features a rated impulse withstand voltage of 6 kV ensuring resilience against transient overvoltages.
A flush actuator type enhances user interaction by providing an ergonomic interface while minimizing accidental operation risks. The clear built-in LED lamp offers excellent visibility even in low-light conditions without any text legend on the button surface allowing customization according to specific application requirements.
Constructed with plastic bezel material this device offers durability without adding unnecessary weight or cost implications associated with metal alternatives. It fits neatly into standard cutout sizes of 22 mm simplifying installation processes across different panel designs.

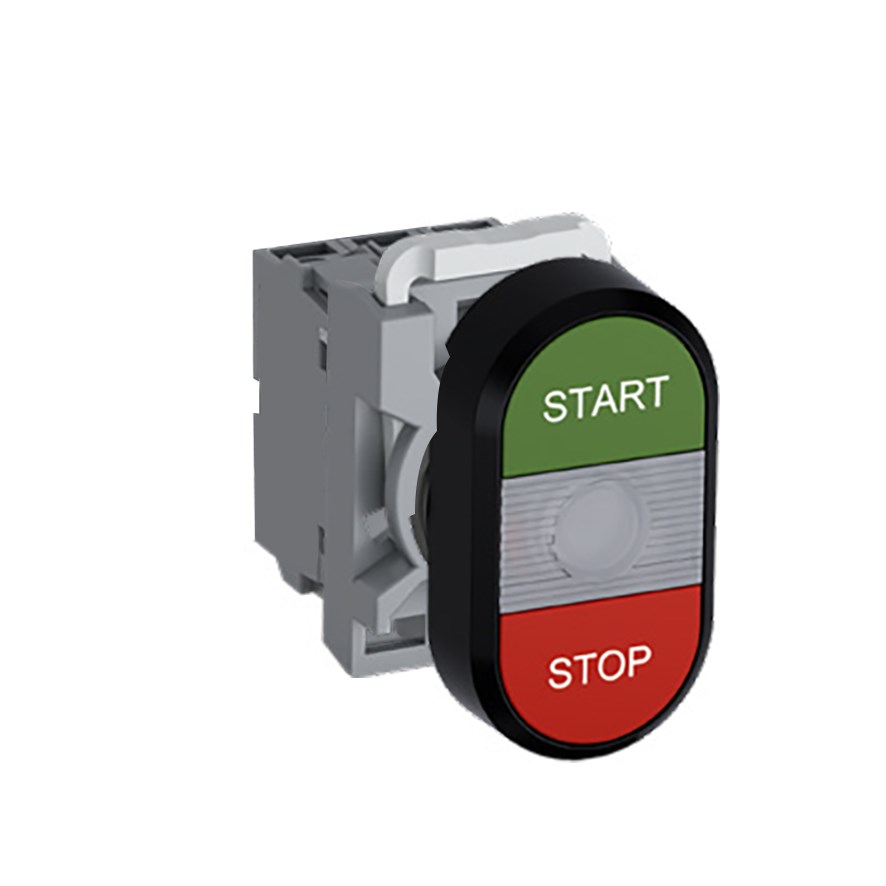

The button comes equipped with green upper and red lower sections enhancing intuitive visual feedback during operation states complemented by LED light blocks delivering consistent illumination levels throughout usage cycles.
Included components such as operator contact block holder along with LED block ensure seamless integration into existing systems reducing downtime during maintenance activities or initial setup phases making it ideal for professionals seeking reliable solutions tailored specifically towards challenging operational contexts commonly found within industrial sectors today.
