When it comes to selecting a reliable pushbutton for industrial and commercial applications, understanding the technical specifications is crucial. This particular pushbutton is designed with durability and functionality in mind, making it suitable for demanding environments such as mining, construction, and heavy industry.

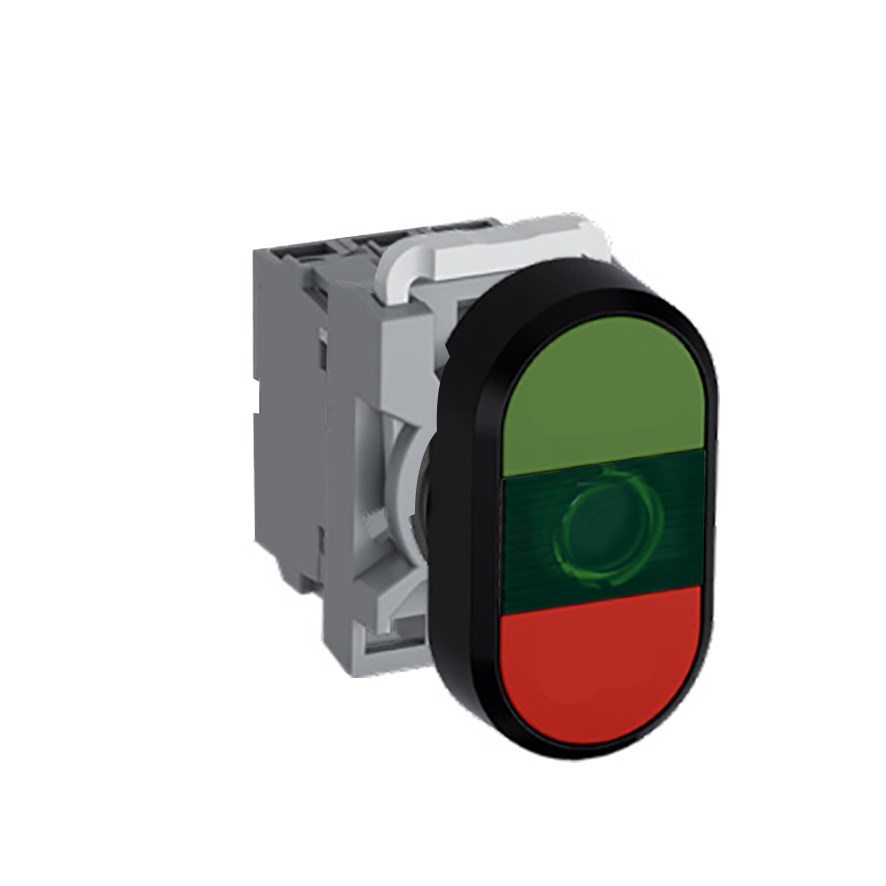

The pushbutton operates at a rated voltage of 230 VAC/DC, ensuring compatibility with various electrical systems. It features a robust illumination system powered by a built-in LED lamp that emits a green light. The dual-color button design includes a green upper section and red lower section, offering clear visual feedback during operation.
Engineered for resilience, the front of the pushbutton boasts an IP66 degree of protection against dust and water ingress, while the terminal side maintains an IP20 rating. This makes it well-suited for harsh conditions where exposure to elements is common. The device meets multiple standards including EN IEC 60947 series among others, ensuring compliance with international safety and performance requirements.
With an ambient temperature range from -25 to 70 degrees Celsius, this pushbutton can function effectively in diverse climatic conditions without compromising performance. Its rated insulation voltage stands at 690 V with an impressive rated impulse withstand voltage of 6 kV, indicating its capability to handle electrical surges safely.
The contact configuration comprises one normally open (NO) and one normally closed (NC) contact which provides versatility in control circuit applications. Additionally, the actuator type is flush/flush which contributes to its sleek design without sacrificing ease of use.
Constructed with practicality in mind, the bezel material is plastic—a choice that balances durability with cost-effectiveness. A standard cutout size of 22 mm ensures compatibility with most panel designs used across industries.
Included components such as the operator unit, contact block holder along with LED block simplify installation processes while maintaining structural integrity over time. Although no text legend accompanies this model’s design—an aspect that may be beneficial depending on specific application needs—the intuitive color coding compensates adequately by providing immediate operational cues.
Overall rated thermal current capacity reaches up to 10 A making it suitable for circuits requiring moderate power handling capabilities efficiently supporting continuous operations typical within heavy-duty sectors like mining or construction workspaces where reliability cannot be compromised under any circumstance due primarily due towards environmental challenges faced regularly therein thus proving itself invaluable asset worth considering when evaluating options available today especially given comprehensive coverage offered through certifications attained thereby reassuring potential users regarding quality assurance aspects inherently associated herein too ultimately leading towards informed decision-making process based upon factual evidence presented accordingly herewith now concluded succinctly yet comprehensively nonetheless indeed!
