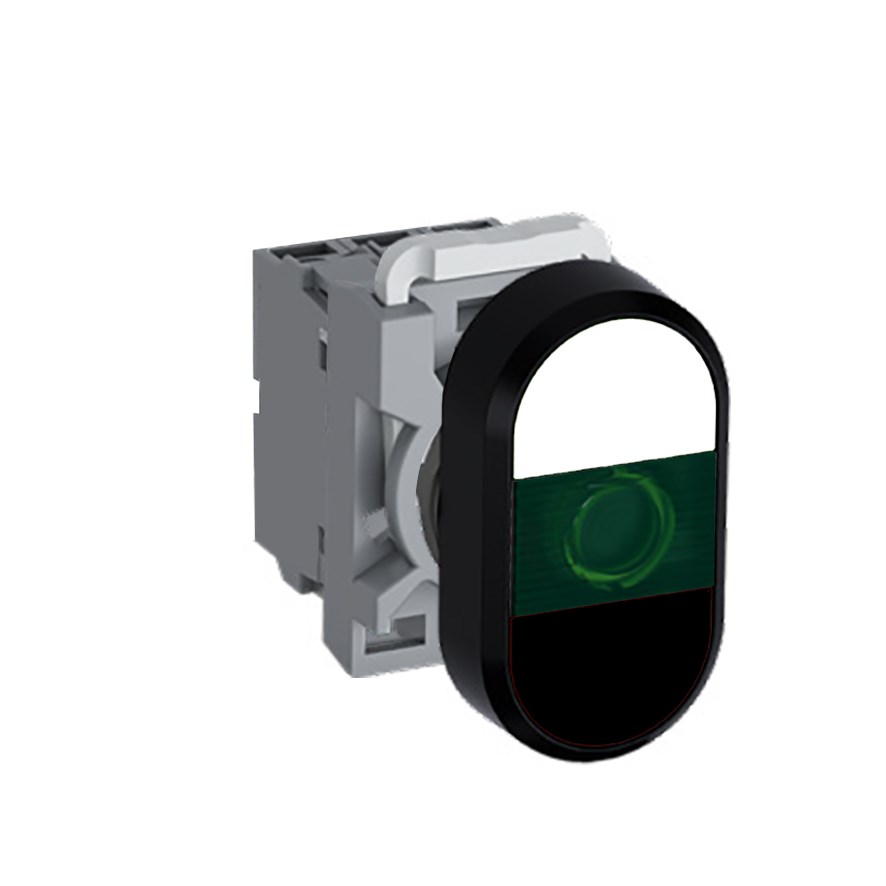

ABB MPDIFGWB411 Illuminated Double Pushbutton Kit Flush/Flush Momentary Green White/Black 110-130VAC/DC 1NO+1NC

Product Code: MPDIFGWB411

  • Illuminated pushbutton with LED block
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C ambient temp range
  • Suitable for mining, construction and heavy industry
  • Flush actuator with green built-in LED lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage AC (V) 110 - 130
LED Block Rated Voltage 110-130 VAC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated double pushbutton kit features a momentary operation and a flush/flush design. The upper actuator is white, while the lower actuator is black. It has a green indicator without any text. The integrated LED is green and operates on 110-130V AC power. The contact configuration is 1NO+1NC. This kit belongs to a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
