Specifications

Contacts	1NO + 1NC
Rated Voltage DC (V)	220
LED Block Rated Voltage	220 VDC
Upper/Lower Button Text	START/STOP
Bezel Material	Plastic
Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Flush
Ambient Temperature	-25 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Plastic
Button Colour	White (Upper), Black (Lower)
Colour	Green
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Green
Lamp Type	Built-in LED
Legend	Start (Upper), Stop (Lower)
Light Blocks Type	LED Block
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

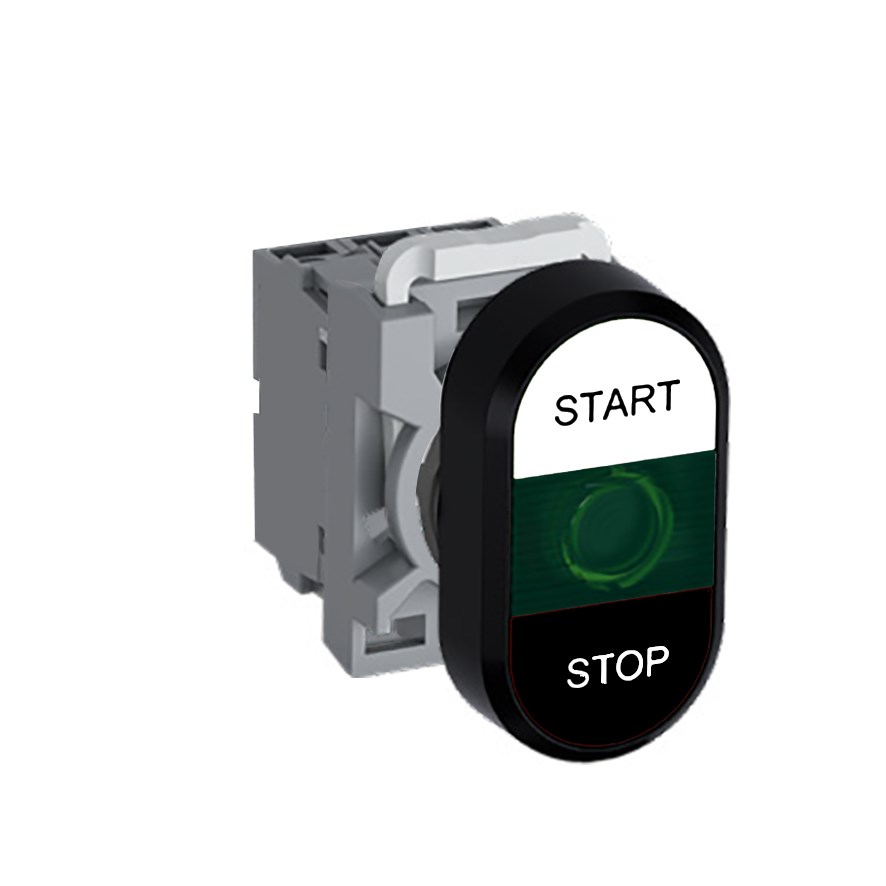

The Illuminated Double Pushbutton Kit is a momentary switch with a flush design. It features a white upper actuator for start and a black lower actuator for stop. The kit includes a green indicator with text. The integrated LED is green and operates at 220V DC. The contact configuration is 1NO+1NC. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPDIFGWBS611 Illuminated Double Pushbutton Kit Flush/Flush Momentary Grn Start/Stop White/Black 220VDC 1NO+1NC

Product Code: MPDIFGWBS611
