When it comes to selecting the right accessory for your industrial needs, understanding the technical specifications and suitability of a product is crucial. This particular accessory is designed with durability and reliability in mind, making it an excellent choice for demanding environments such as mining, construction, and heavy industry applications.
At its core, this accessory operates at a rated voltage of 220 VDC and features an illuminated design that enhances visibility in low-light conditions. Its robust build ensures protection against dust and water ingress with an IP66 rating on the front side while maintaining an IP20 rating at the terminal. This means it's well-suited to withstand harsh environmental factors without compromising performance.
The product complies with several international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These approvals underscore its quality and safety credentials across various markets.
Designed to operate efficiently within a broad ambient temperature range from -25 to 70 degrees Celsius, this accessory can handle extreme temperatures typical of rigorous industrial settings. It boasts a rated insulation voltage of up to 690 V which provides added assurance against electrical faults.
The contact configuration consists of two normally closed (2NC) contacts which are ideal for ensuring circuit continuity until manually interrupted. Additionally, it has a rated impulse withstand voltage of 6 kV—a testament to its resilience against transient overvoltages.

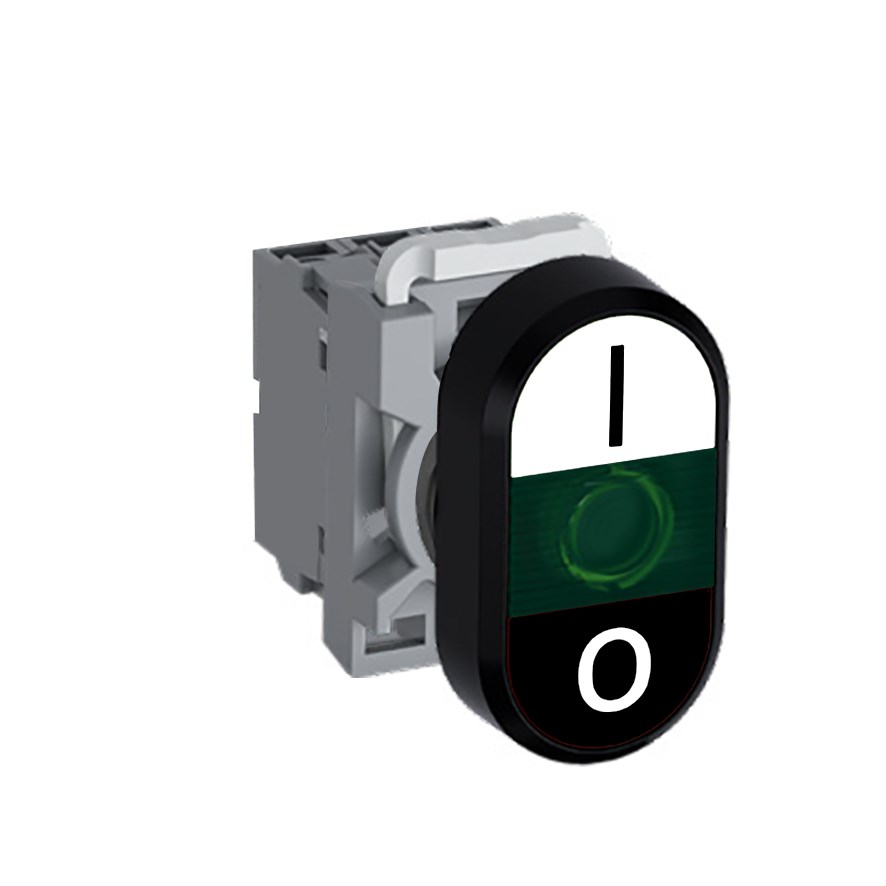

Aesthetically functional too—the actuator type is flush/flush with a green built-in LED lamp indicating operational status clearly. The button sports a dual-color scheme: white on the upper part marked 'I' for easy identification when activated and black on the lower part marked 'O'.
Constructed from durable plastic material around the bezel area—this accessory fits into standard cutout sizes measuring at 22 mm diameter ensuring compatibility with existing setups without additional modifications needed.
Included in this package are essential components such as an operator unit alongside contact block holder plus LED block making installation straightforward even under tight deadlines or complex configurations often encountered during large-scale projects typical within heavy industries.
In summary—this versatile yet reliable solution offers not only compliance but also adaptability across diverse applications where high-performance standards must be met consistently over time regardless if you're working underground mines or towering construction sites alike!
