For professionals in the mining, construction, and heavy industry sectors seeking reliable control solutions, this pushbutton offers a robust design and functionality to meet demanding environments. With its rated voltage of 230 VAC/DC and an impressive rated insulation voltage of 690 V, it ensures operational safety across various applications.
Designed with durability in mind, the pushbutton features a degree of protection rated at IP66 for the front and IP20 for terminals. This means it is highly resistant to dust ingress and water jets from any direction while maintaining adequate protection at the terminal level. Its compliance with numerous standards such as EN IEC 60947-1, EN IEC 60947-5-1, UL 508, and CSA C22.2 No. 14 underscores its reliability and adherence to international safety norms.
Operating efficiently within a wide ambient temperature range of -25 to 70 degrees Celsius makes this pushbutton suitable for diverse environmental conditions found on industrial sites. The contact configuration includes one normally open (NO) and one normally closed (NC) contact which provides versatile wiring options for different control systems.
This pushbutton is illuminated by a built-in LED lamp that emits a green light, ensuring visibility even in low-light conditions common in industrial settings. The flush actuator type allows for easy operation without protruding significantly from control panels or surfaces. Additionally, the momentary function ensures that operations are only active when needed—ideal for tasks requiring precise manual input.

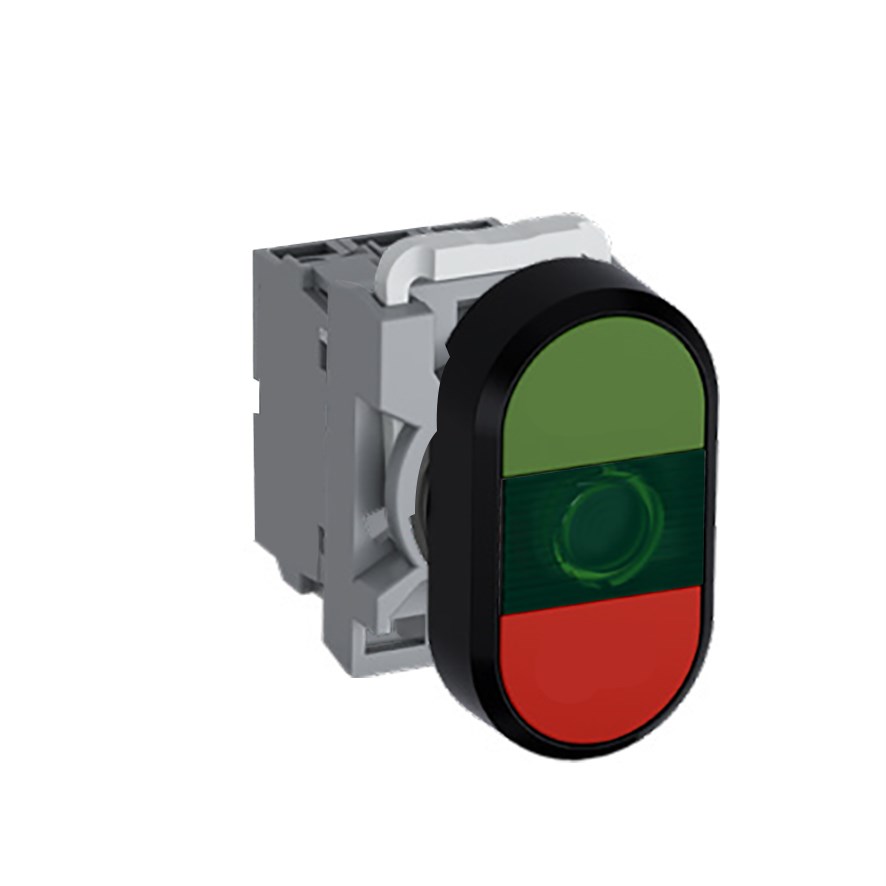

The bezel material is made from durable plastic while the button itself features an upper green section complemented by a lower red section—this dual-color scheme can aid operators in distinguishing between different states or functions quickly.
Installation is straightforward with a cutout size of 22 mm making it compatible with standard panel openings. It comes complete with an operator unit, contact block holder, LED block as well as necessary components like the contact block itself ensuring everything needed for installation is included right out of the box.
In summary, this illuminated pushbutton combines high performance with practical design elements tailored specifically for challenging industrial environments offering both reliability and ease-of-use essential qualities sought after by professionals tasked with maintaining complex systems under tough conditions.
